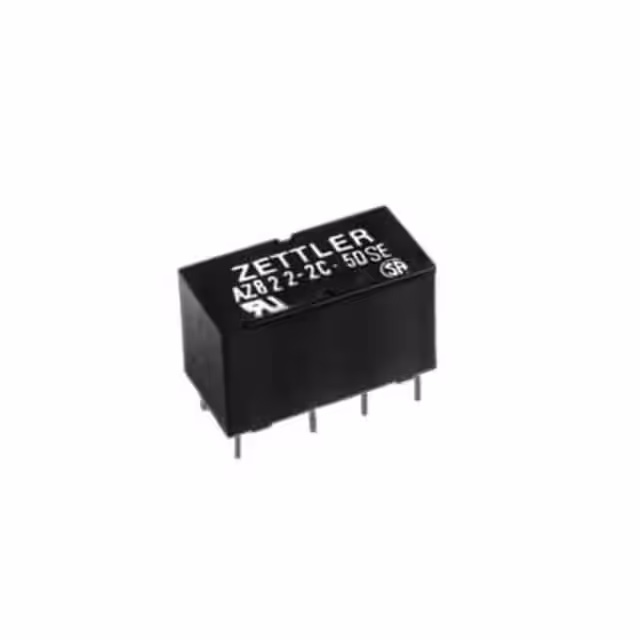

AZ822-2C-12DE

Manufacturer :

American Zettler

Product Category :

Signal Relays, Up to 2 Amps

Coil Operate Voltage(DC) :

8.4 V

Sealing :

EPOXY TERMINAL SEALED

Relay Form :

2 Form C

Coil Insulation :

-

Contact Current(DC)-Max :

2 A

Additional Feature :

LOW PROFILE

Relay Function :

DPDT

Coil Type :

Non Latching

Contact Material :

Silver Palladium (AgPd), Gold (Au)

Contact Current(AC)-Max :

2 A

Coil Voltage(DC)-Max :

12 V

Coil Power :

204 mW

Input Switching Control Type :

Random

Features :

-

Mounting Type :

Through Hole

Base Product Number :

AZ822

Operate Time :

5 ms

Weight :

4.5 g

Product Status :

Active

Switching Voltage :

250VAC, 220VDC - Max

Number of Terminals :

8

PCB Hole Count :

8

Operating Temperature :

-55°C ~ 90°C

Termination Style :

PC Pin

Package :

Tube

Coil Current(DC)-Max :

0.017 A

Coil Voltage :

12VDC

Coil Current :

16.7 mA

Contact/Output Supply Type :

AC/DC

Contact Form :

DPDT (2 Form C)

Seal Rating :

Sealed - Fully

Must Operate Voltage :

8.4 VDC

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Contact Voltage(DC)-Max :

220 V

Manufacturer :

American ZETTLER Inc

Relay Action :

Momentary

End Contact Material :

Silver Palladium

Coil Resistance :

720 Ohms

End Contact Plating :

Gold

Dielectric Strength Between Coil and Contacts :

1000 Vrms

Termination Type :

Solder

Dielectric Strength Between Open Contacts :

1000 Vrms

Body Height :

12 mm

Coil/Input Supply Type :

DC

Contact Voltage(AC)-Max :

250 V

Terminal Length :

0.0035 inch

Physical Dimension :

20mm x 9.8mm x 12mm

Must Release Voltage :

0.6 Vdc

Contact Resistance :

50 mΩ

Body Breadth :

9.8 mm

Contact Rating (Current) :

2 A

Reference Standard :

CUL; UL

Reach Compliance Code :

Compliant

Release Time :

2 ms

Electrical Life :

500000 Cycle(s)

Body Length or Diameter :

20 mm

ECCN Code :

EAR99

Relay Type :

GENERAL PURPOSE

Insulation Resistance :

1000000000 Ω

Series :

-

Surface Mount :

No
