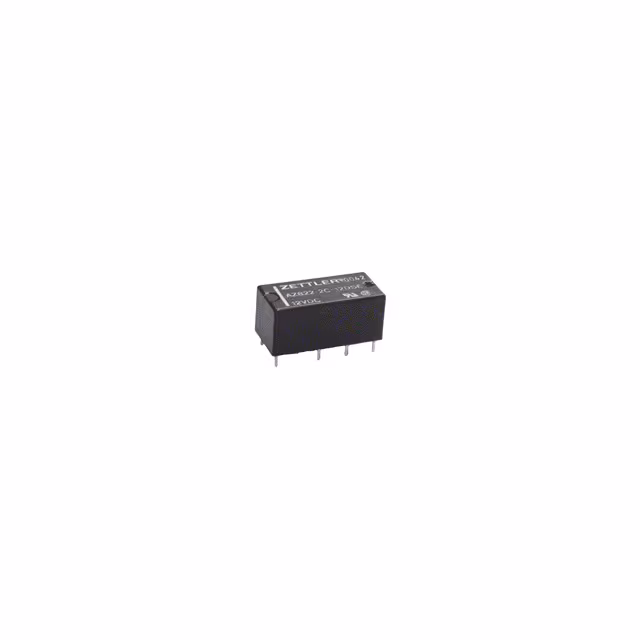

AZ822-2C-24DE

Manufacturer :

American Zettler

Product Category :

Signal Relays, Up to 2 Amps

Contact Current(DC)-Max :

2 A

Coil Resistance :

2.88 kOhms

Mounting Type :

Through Hole

Reach Compliance Code :

Compliant

Contact Current(AC)-Max :

2 A

Body Breadth :

9.8 mm

Body Height :

12 mm

Contact Material :

Silver Palladium (AgPd), Gold (Au)

Electrical Life :

500000 Cycle(s)

End Contact Plating :

Gold

Coil Voltage :

24VDC

Coil/Input Supply Type :

DC

End Contact Material :

Silver Palladium

Contact Rating (Current) :

2 A

Dielectric Strength Between Coil and Contacts :

1000 Vrms

Operating Temperature :

-55°C ~ 90°C

PCB Hole Count :

8

Coil Operate Voltage(DC) :

16.8 V

Coil Voltage(DC)-Max :

52.9 V

Release Time :

2 ms

Dielectric Strength Between Open Contacts :

1000 Vrms

Termination Style :

PC Pin

Seal Rating :

Sealed - Fully

Coil Current :

8.3 mA

Insulation Resistance :

1000000000 Ω

Coil Type :

Non Latching

Sealing :

Epoxy

Base Product Number :

AZ822

Package :

Tray

Relay Form :

2 Form C

Coil Insulation :

-

Must Release Voltage :

1.2 VDC

Operate Time :

5 ms

Weight :

4.5 g

Body Length or Diameter :

20 mm

Contact Voltage(AC)-Max :

250 V

Input Switching Control Type :

Random

Relay Function :

DPDT

Contact/Output Supply Type :

AC/DC

Reference Standard :

CUR; UL

Series :

-

Terminal Length :

0.0035 inch

JESD-609 Code :

e3

Contact Voltage(DC)-Max :

220 V

Relay Action :

LATCHED

Product Status :

Active

Manufacturer :

American ZETTLER Inc

Relay Type :

GENERAL PURPOSE

Features :

-

Contact Resistance :

50 mΩ

Contact Form :

DPDT (2 Form C)

Must Operate Voltage :

16.8 VDC

Terminal Finish :

Tin

ECCN Code :

EAR99

Termination Type :

Solder

Physical Dimension :

20mm x 9.8mm x 12mm

Number of Terminals :

8

Switching Voltage :

250VAC, 220VDC - Max
