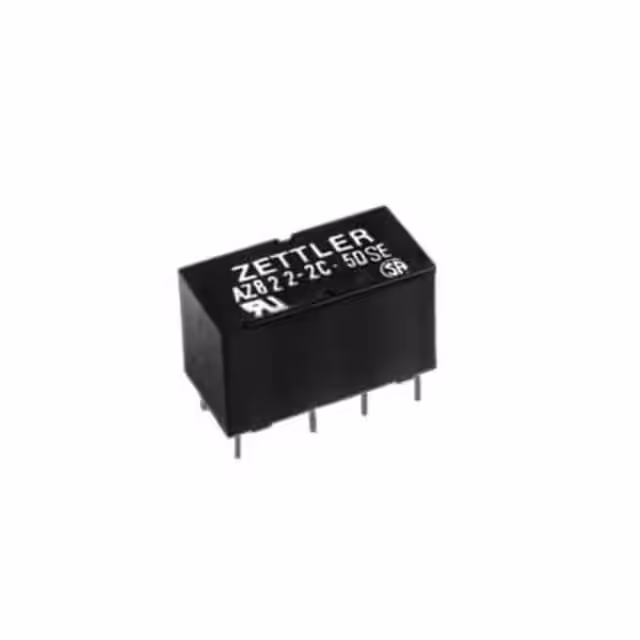

AZ822-2C-12DSE

Manufacturer :

American Zettler

Product Category :

Signal Relays, Up to 2 Amps

Contact Voltage(AC)-Max :

250V

Type :

AZ822-2C-12DSE

Connection :

Solder pins

Max. temperature :

+90°C

Body Length or Diameter :

20mm

Sealing :

EPOXY TERMINAL SEALED

Relay Type :

POWER/SIGNAL RELAY

Width :

9.8mm

Contact Voltage(DC)-Max :

220V

Operating Temperature (Min) :

-55°C

Electrical Life :

5000000 Cycle(s)

Coil Operate Voltage(DC) :

8.4V

Operating Temperature (Max) :

90°C

Termination Type :

Solder

Resistance (coil) :

960Ω

Switching current (max.) :

2A

Max. switching capacity :

60W

Body Height :

12mm

Height :

12mm

Coil Current(DC)-Max :

0.0125A

Contact Current(DC)-Max :

2A

Min. temperature :

-55°C

Coil/Input Supply Type :

DC

Operate Time :

5 ms

Durability :

1 x 10E8

Contact/Output Supply Type :

AC/DC

Coil Voltage(DC)-Max :

12V

Length :

20mm

Contact (DC) Max Rating R Load :

2A@220VDC

Body Breadth :

9.8 mm

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Contact Current(AC)-Max :

2A

Switching voltage (max.) :

220V DC,250V AC

Release Time :

2 ms

Coil nominal voltage :

12V DC

JESD-609 Code :

e2

Reference Standard :

UL

Content :

1pc(s)

Packing Method :

BOX; TUBE

Contact (AC) Max Rating R Load :

2A@250VAC

Relay Action :

Momentary

Fall time :

2ms

ECCN Code :

EAR99

Surface Mount :

No

Terminal Finish :

TIN COPPER

Physical Dimension :

20mm x 9.8mm x 12mm

Coil Power :

74mW

HTS Code :

8536.49.00.50

Dim :

(L x W x H) 20 x 9.8 x 12 mm

Coil Resistance :

960Ohm

Relay Function :

DPDT
