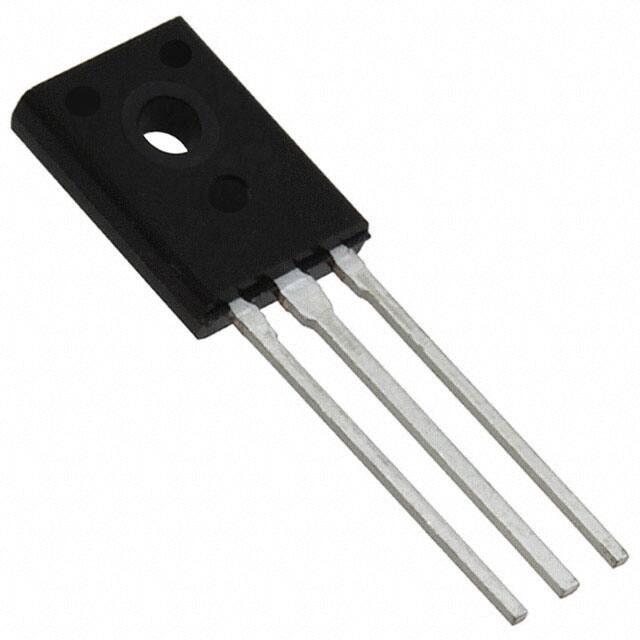

BD237-BP
Or copy the link below:
- Mfr.Part #
- BD237-BP
- Manufacturer
- Micro Commercial Components (MCC)
- Package / Case
- TO-225AA, TO-126-3
- Datasheet
- Download
- Description
- TRANS NPN 80V 2A TO126
- Stock
- 38,210
- In Stock ：
- 38,210
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Micro Commercial Components (MCC)
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Terminal Finish :
- Matte Tin (Sn)
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Frequency - Transition :
- 3MHz
- Vce Saturation (Max) @ Ib, Ic :
- 600mV @ 100mA, 1A
- Current - Collector Cutoff (Max) :
- 100μA ICBO
- JESD-30 Code :
- R-PSFM-T3
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Polarity/Channel Type :
- NPN
- Configuration :
- Single
- Current - Collector (Ic) (Max) :
- 2A
- Mounting Type :
- Through Hole
- JESD-609 Code :
- e3
- Pbfree Code :
- yes
- Qualification Status :
- Not Qualified
- Surface Mount :
- No
- Reach Compliance Code :
- Compliant
- Power - Max :
- 1.25W
- Transistor Element Material :
- SILICON
- ECCN Code :
- EAR99
- Package / Case :
- TO-225AA, TO-126-3
- Number of Elements :
- 1
- Terminal Position :
- Single
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- RoHS Compliant
- Pin Count :
- 3
- Operating Temperature :
- 150°C TJ
- Voltage - Collector Emitter Breakdown (Max) :
- 80V
- Transistor Type :
- NPN
- Transition Frequency :
- 3MHz
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 40 @ 150mA 2V
- Number of Terminations :
- 3
- Datasheets
- BD237-BP
NPN 150°C TJ 100μA ICBO 1 Elements 3 Terminations SILICON NPN TO-225AA, TO-126-3 Through Hole
BD237-BP Overview
As dc = Ic/Ib, DC current gain is the ratio of base current to collector current, and DC current gain for this device is 40 @ 150mA 2V.When VCE saturation is 600mV @ 100mA, 1A, transistor means Ic has reached transistors maximum value (saturated).In the part, the transition frequency is 3MHz.The device has a 80V maximal voltage - Collector Emitter Breakdown.
BD237-BP Features
the DC current gain for this device is 40 @ 150mA 2V
the vce saturation(Max) is 600mV @ 100mA, 1A
a transition frequency of 3MHz
BD237-BP Applications
There are a lot of Micro Commercial Co
BD237-BP applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
