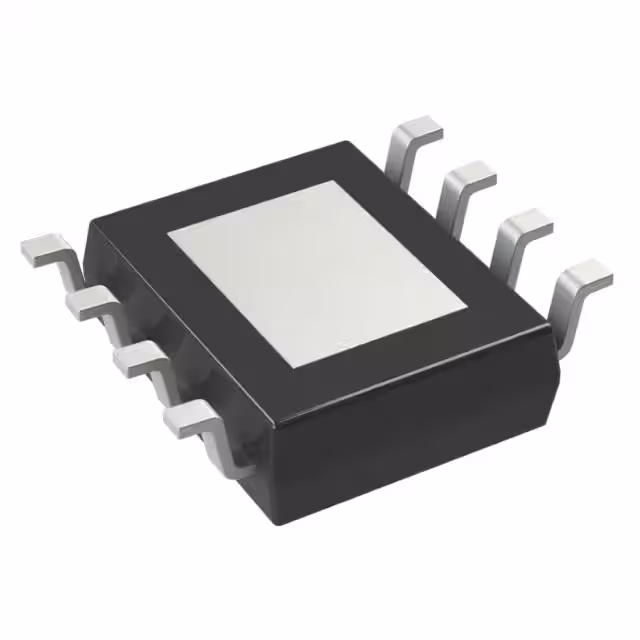

BD80FC0WEFJ-E2

Manufacturer :

ROHM Semiconductor

Product Category :

Voltage Regulators - Linear

Reach Compliance Code :

Compliant

Grade :

Standard

Operating Temperature (Min.)[°C] :

-25

Supplier Device Package :

8-HTSOP-J

Maximum Operating Temperature :

+ 85 C

Vin(Min.)[V] :

4.0

Output Voltage1-Max :

8.08 V

Output Configuration :

Positive

Packaging :

Tape and Reel

Number of Regulators :

1

Operating Temp Range :

-25C to 85C

Breakdown Voltage(Max.)[V] :

35.0

Iout(Max.)[A] :

1.0

Reference Voltage :

0.758(V)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Series :

-

Operating Temperature (Max.)[°C] :

85

Input Voltage (Min) :

9(V)

Soft Start :

No

Package / Case :

HTSOP-J-8

Regulator Type :

FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Voltage Dropout (Max) :

0.5V @ 500mA

Voltage - Input (Max) :

26.5V

Product Status :

Active

Vout (Typ.) [V] :

8

Seated Height-Max :

1 mm

Brand :

Rohm Semiconductor

Vin(Max.)[V] :

26.5

Output Type :

FIXED

Polarity :

Positive

Vout Precision :

±1

Minimum Operating Temperature :

- 25 C

Shutdown Function :

yes

Voltage - Output (Max) :

-

ECCN Code :

EAR99

Number of Outputs :

1

Current - Output :

1A

ch :

1

Input Voltage :

26.5(V)

Over Voltage Protection :

No

Protection Features :

Over Current, Over Temperature

Thermal Shut-down :

yes

RoHS :

Lead free / RoHS Compliant

HTS Code :

8542.39.00.01

Manufacturer :

Rohm Semiconductor

PSRR :

-

Width :

3.9 mm

Operating Temperature TJ-Max :

150 °C

Load Regulation :

0.16V

Output Voltage1-Nom :

8 V

Discharge Function :

No

Line Regulation :

80mV

Terminal Form :

Gull wing

Output Voltage1-Min :

7.92 V

Voltage - Output (Min/Fixed) :

8V

Output Current :

1000(mA)

Dropout Voltage :

300 mV

Output Voltage :

8(V)

Number of Terminals :

8

Output Current1-Max :

1 A

Package Shape :

RECTANGULAR

Terminal Position :

Dual

Mounting Type :

Surface Mount

Terminal Pitch :

1.27 mm

Operating Temperature :

-25°C ~ 85°C (TA)

JESD-30 Code :

R-PDSO-G8

Subcategory :

PMIC - Power Management ICs

Type :

LDO

Control Features :

Enable

Product :

LDO Regulators

Dropout Voltage@Current (Typ) :

0.3(MIN)@500MA

Package Type :

HTSOP-J EP

Dropout Voltage@Current (Max) :

0.5(MIN)@500MA

Surface Mount :

yes

Number of Functions :

1

Product Type :

LDO Voltage Regulators

Length :

4.9 mm

Current - Quiescent (Iq) :

2.5 mA

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Circuit Current[mA] :

0.5

Product Category :

LDO Voltage Regulators

Operating Supply Current :

2.5 mA

Mounting Style :

SMD/SMT

Over Current Protection :

yes
