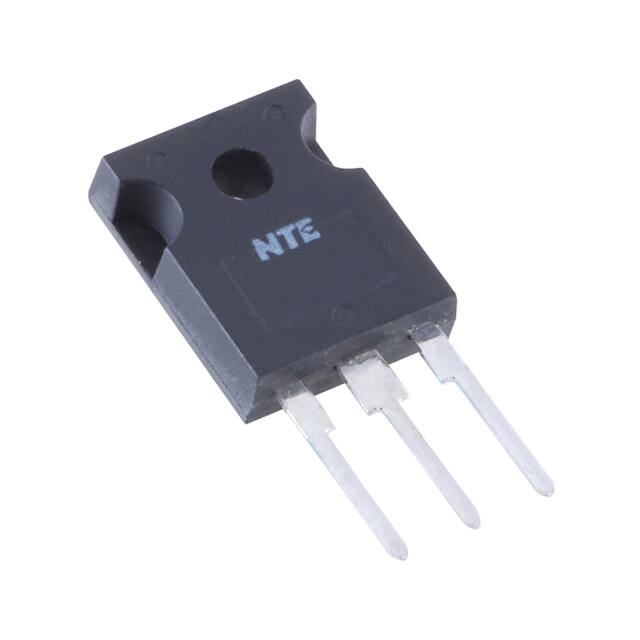

BDV65
Or copy the link below:
- Mfr.Part #
- BDV65
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- TO-218-3
- Datasheet
- Download
- Description
- TRANS NPN 60V 12A TO218
- Stock
- 631
- In Stock ：
- 631
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Transistor Application :
- AMPLIFIER
- Current - Collector (Ic) (Max) :
- 12A
- Terminal Position :
- Single
- Operating Temperature (Max) :
- 150°C
- Number of Terminations :
- 3
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Transition Frequency :
- 60MHz
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 1000 @ 5A 4V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Frequency - Transition :
- 60MHz
- Packaging :
- Bulk
- Package / Case :
- TO-218-3
- Surface Mount :
- No
- Voltage - Collector Emitter Breakdown (Max) :
- 60V
- Power - Max :
- 125W
- HTS Code :
- 8541.29.00.75
- RoHS Status :
- Non-RoHS Compliant
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- JESD-30 Code :
- R-PSFM-T3
- Case Connection :
- COLLECTOR
- Transistor Element Material :
- SILICON
- ECCN Code :
- EAR99
- JESD-609 Code :
- e0
- Power Dissipation-Max (Abs) :
- 125W
- Transistor Type :
- NPN
- Mounting Type :
- Through Hole
- Qualification Status :
- Not Qualified
- Pbfree Code :
- No
- Reach Compliance Code :
- not_compliant
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Polarity/Channel Type :
- NPN
- Configuration :
- Darlington
- Number of Elements :
- 1
- Datasheets
- BDV65
NPN 1 Elements 3 Terminations SILICON NPN TO-218-3 Bulk Through Hole
BDV65 Overview
As explained above, DC current gain takes into account the rate at which the base current flows through the collector current; therefore, DC current gain for this device is 1000 @ 5A 4V.The part has a transition frequency of 60MHz.Device displays Collector Emitter Breakdown (60V maximal voltage).
BDV65 Features
the DC current gain for this device is 1000 @ 5A 4V
a transition frequency of 60MHz
BDV65 Applications
There are a lot of Central Semiconductor Corp
BDV65 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
