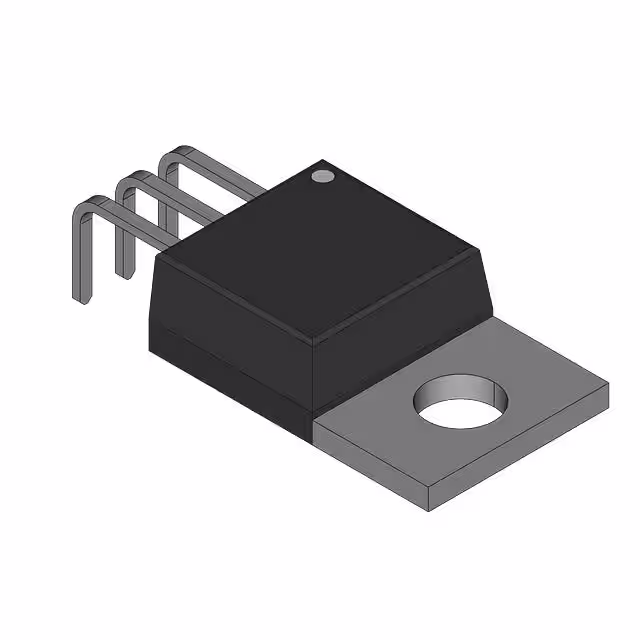

BUL147

Manufacturer :

onsemi

Product Category :

Transistors - Bipolar (BJT) - Single

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Min Operating Temperature :

-65 °C

Element Configuration :

Single

Reach Compliance Code :

Unknown

Terminal Position :

Single

DC Current Gain-Min (hFE) :

8

Series :

*

Qualification Status :

COMMERCIAL

Collector Base Voltage (VCBO) :

700 V

Collector Current-Max (IC) :

8 A

Number of Elements :

1

Lead Free :

Contains Lead

JEDEC-95 Code :

TO-220AB

Manufacturer :

Rochester Electronics LLC

Max Collector Current :

8 A

Max Power Dissipation :

125 W

hFE Min :

10

Transistor Application :

SWITCHING

JESD-609 Code :

e0

Polarity :

NPN

Emitter Base Voltage (VEBO) :

9 V

Pbfree Code :

No

Collector Emitter Voltage (VCEO) :

400 V

Number of Pins :

3

Case Connection :

COLLECTOR

JESD-30 Code :

R-PSFM-T3

Collector-Emitter Voltage-Max :

400 V

Gain Bandwidth Product :

14 MHz

Surface Mount :

No

Package :

Bulk

Polarity/Channel Type :

NPN

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Terminal Form :

THROUGH-HOLE

Max Operating Temperature :

150 °C

Additional Feature :

LEADFORM OPTIONS ARE AVAILABLE

Terminal Finish :

TIN LEAD

Configuration :

Single

Number of Terminals :

3

Transistor Element Material :

SILICON

Product Status :

Active

RoHS :

Compliant

Pin Count :

3

Peak Reflow Temperature (Cel) :

240

Collector Emitter Saturation Voltage :

920 mV

Package Shape :

RECTANGULAR
