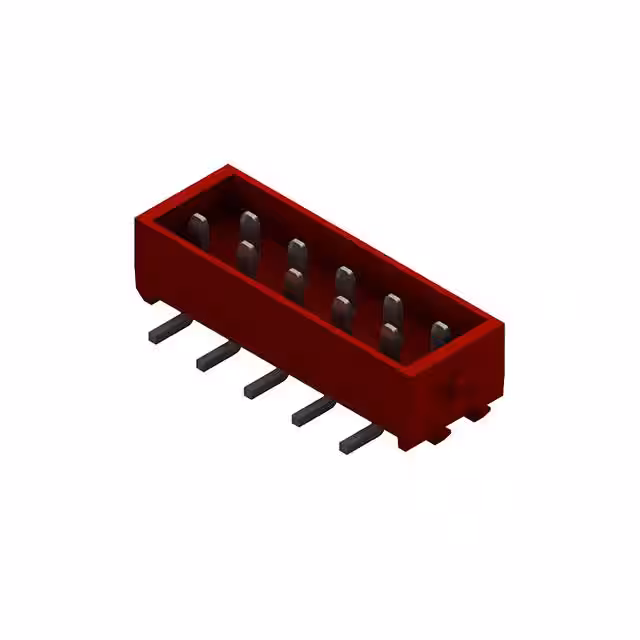

CA3006M13R0

Manufacturer :

CviLux

Product Category :

Headers, Male Pins

Terminal Pitch :

2.54 mm

Mating Contact Row Spacing :

0.059 inch

HTS Code :

8536.69.40.40

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Insulator Color :

Red

Series :

CA30

Mated Stacking Heights :

-

PCB Contact Row Spacing :

4.4958 mm

Number Of PCB Rows :

2

Termination :

Solder

Mounting Type :

BOARD

Contact Length - Mating :

-

Contact Finish - Mating :

Tin

Contact Resistance :

10 MΩ

Shrouding :

Shrouded - 4 Wall

Ingress Protection :

-

Contact Material :

Phosphor Bronze

Current Rating (Amps) :

1.5A

Body Depth :

0.181 inch

Number of Positions :

6

Mounting Option 1 :

LOCKING

Polarization Key :

POLARIZED HOUSING

Body/Shell Style :

Receptacle

Product Status :

Active

Termination Type :

Surface Mount

Mating Contact Pitch :

0.1 inch

Withdrawl Force-Min :

.973 N

Overall Contact Length :

-

Insulation Resistance :

1000000000 Ω

Insulation Color :

Red

Features :

Pick and Place

PCB Contact Pattern :

STAGGERED

Applications :

-

Insertion Force-Max :

4.8928 N

Dielectric Withstanding Voltage :

500VAC V

Number of Positions Loaded :

All

Insulation Material :

Thermoplastic

Contact Pattern :

STAGGERED

Contact Finish Thickness - Mating :

-

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL

Row Spacing - Mating :

0.059 (1.50mm)

Style :

Board to Board or Cable

Pitch - Mating :

0.100 (2.54mm)

Contact Gender :

Male

Number of Rows :

2

Contact Finish - Post :

Tin

Contact Shape :

RECTANGULAR

Connector Type :

BOARD CONNECTOR

Reliability :

COMMERCIAL

Contact Length - Post :

-

Mounting Style :

Straight

ECCN Code :

EAR99

Contact Finish Thickness - Post :

-

Insulation Height :

0.142 (3.61mm)

Contact Type :

Male Pin

Body Breadth :

0.197 inch

Voltage Rating :

230VAC/DC

Fastening Type :

Locking Ramp

Operating Temperature :

-40°C ~ 105°C

Reach Compliance Code :

Compliant

Total Number of Contacts :

6

Rated Current (Signal) :

1.5 A
