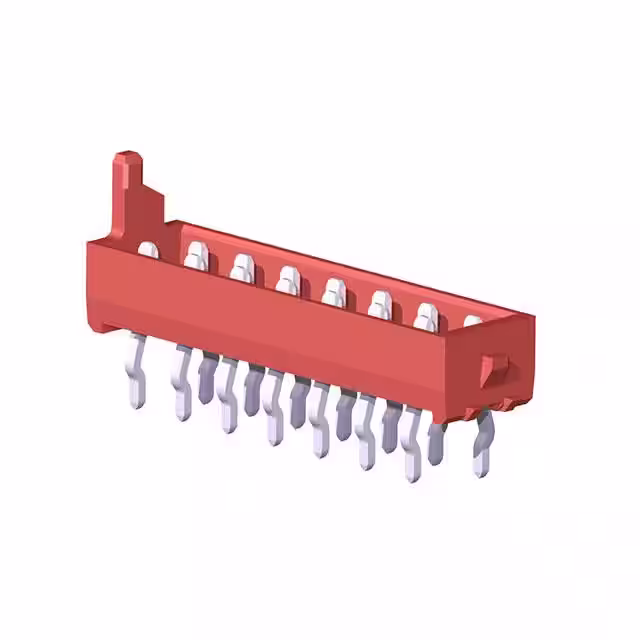

CA3006P1300

Manufacturer :

CviLux

Product Category :

Headers, Male Pins

Insulation Color :

Red

Row Spacing - Mating :

0.059 (1.50mm)

Fastening Type :

Locking Ramp

Mounting Option 1 :

LOCKING

PCB Contact Pattern :

STAGGERED

Body Depth :

0.276 inch

Voltage Rating :

230VAC/DC

Connector Type :

BOARD CONNECTOR

Body Breadth :

0.197 inch

Contact Pattern :

STAGGERED

Insulation Height :

0.267 (6.78mm)

Features :

-

Shrouding :

Shrouded - 4 Wall

Applications :

-

Reach Compliance Code :

Compliant

Insulation Resistance :

1000000000 Ω

Contact Gender :

Male

Reliability :

COMMERCIAL

Mating Contact Pitch :

0.1 inch

Operating Temperature :

-40°C ~ 105°C

Material Flammability Rating :

UL94 V-0

Rated Current (Signal) :

1.5 A

Contact Finish - Mating :

Tin

Contact Length - Mating :

-

Number of Rows :

2

Number of Positions :

6

Mated Stacking Heights :

-

Terminal Pitch :

2.54 mm

Ingress Protection :

-

Contact Finish Thickness - Post :

-

Body/Shell Style :

Receptacle

Total Number of Contacts :

6

Series :

CA30

Insulator Color :

Red

Package :

Tube

Current Rating (Amps) :

1.5A

Contact Finish Thickness - Mating :

-

Pitch - Mating :

0.100 (2.54mm)

Terminal Length :

0.122 inch

Insulation Material :

Polyester, Glass Filled

Termination :

Kinked Pin, Solder

Contact Material :

Phosphor Bronze

Polarization Key :

POLARIZED HOUSING

Mounting Type :

BOARD

Dielectric Withstanding Voltage :

500VAC V

Style :

Board to Board or Cable

Mounting Style :

Straight

Termination Type :

SOLDER KINKED LEADS

Contact Length - Post :

0.122 (3.10mm)

Reference Standard :

UL

ECCN Code :

EAR99

Contact Resistance :

10 MΩ

Number Of PCB Rows :

2

Overall Contact Length :

-

Contact Type :

Male Pin

Number of Positions Loaded :

All

Mating Contact Row Spacing :

0.059 inch

Product Status :

Active

Contact Finish - Post :

Tin

HTS Code :

8536.69.40.40

PCB Contact Row Spacing :

2.54 mm

Contact Shape :

RECTANGULAR

Contact Style :

BLADE PIN-SKT
