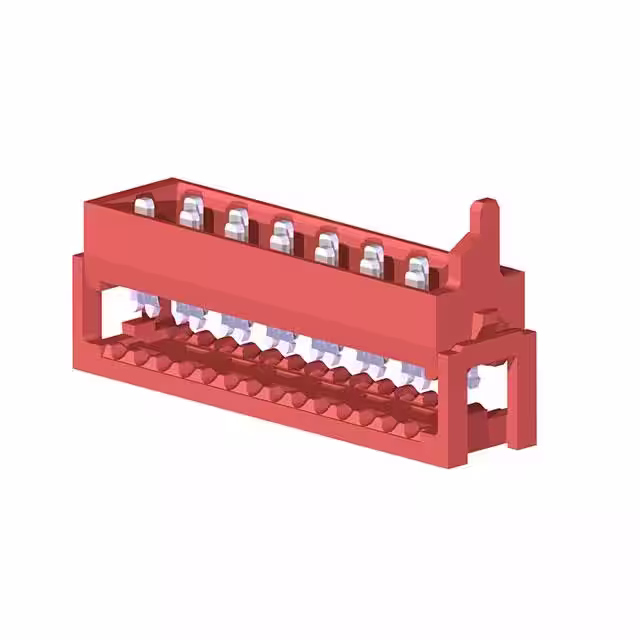

CA3006P13I0
Or copy the link below:
- Mfr.Part #
- CA3006P13I0
- Manufacturer
- CviLux
- Package / Case
- Datasheet
- Download
- Description
- 1.27MM (.050") MALE IDC CONNECTO
- Stock
- 3,094
- In Stock ：
- 3,094
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CviLux
- Product Category :
- Free Hanging, Panel Mount
- Contact Pattern :
- STAGGERED
- HTS Code :
- 8536.69.40.40
- Manufacturer :
- Cvilux Corporation
- Withdrawl Force-Min :
- .973 N
- Fastening Type :
- Locking Ramp
- Rated Current (Signal) :
- 1.5 A
- Mating Contact Pitch :
- 0.1 inch
- Contact Gender :
- Male
- Product Status :
- Active
- Color :
- Red
- Insulation Resistance :
- 1000000000 Ω
- Body Breadth :
- 0.197 inch
- Mating Contact Row Spacing :
- 0.059 inch
- Body/Shell Style :
- Receptacle
- Wire Gauge :
- 28 AWG
- Reach Compliance Code :
- Compliant
- Total Number of Contacts :
- 6
- Contact Material :
- Phosphor Bronze
- Number of Positions :
- 6
- Contact Resistance :
- 10 MΩ
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Package :
- Bulk
- Cable Termination :
- IDC
- Number of Rows :
- 2
- Termination Type :
- IDC
- Series :
- *
- Insulator Color :
- Red
- Insertion Force-Max :
- 4.8928 N
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Type :
- Male Pin
- Mounting Option 1 :
- LOCKING
- Polarization Key :
- POLARIZED HOUSING
- Features :
- -
- Subcategory :
- Headers and Edge Type Connectors
- ECCN Code :
- EAR99
- Connector Type :
- Header
- Reliability :
- COMMERCIAL
- Row Spacing :
- 0.059 (1.50mm)
- Reference Standard :
- UL
- Contact Finish Thickness :
- -
- Contact Finish :
- Tin
- Wire Type :
- Ribbon Cable
- Pitch :
- 0.050 (1.27mm)
- Datasheets
- CA3006P13I0
