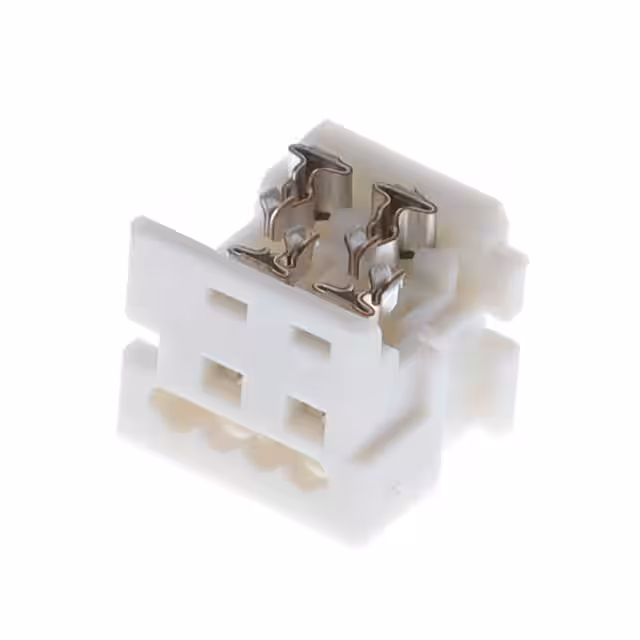

CA3304P10I0-NH

Manufacturer :

CviLux

Product Category :

Free Hanging, Panel Mount

Fastening Type :

-

Zener Voltage :

150 V

Row Spacing :

-

Product Status :

Active

Contact Pattern :

STAGGERED

Insulation Resistance :

1000000000 Ω

Mount :

Through Hole

Withdrawl Force-Min :

.973 N

Contact Gender :

Male

Manufacturer :

Cvilux Corporation

Element Configuration :

Single

Pitch :

0.050 (1.27mm)

ECCN Code :

EAR99

Contact Resistance :

15 mΩ

Number of Pins :

2

Contact Finish Thickness :

30.0µin (0.76µm)

Insertion Force-Max :

4.8928 N

Termination Type :

IDC

Rated Current (Signal) :

1.2 A

RoHS :

Compliant

Cable Termination :

IDC

Connector Type :

Header

Series :

CA33

Impedance :

575 Ω

Max Reverse Leakage Current :

500 nA

Tolerance :

2 %

Plating Thickness :

30u inch

Number of Positions :

4

Insulator Color :

Natural

Body/Shell Style :

Receptacle

Subcategory :

Headers and Edge Type Connectors

Mounting Type :

Free Hanging (In-Line)

Body Breadth :

0.276 inch

Body Depth :

0.252 inch

Mating Contact Pitch :

0.1 inch

Contact Material :

Phosphor Bronze

Package :

Tube

Radiation Hardening :

No

Lifecycle Status :

Obsolete (Last Updated: 2 months ago)

Reference Standard :

UL

Reliability :

COMMERCIAL

Packaging :

Tape and Reel

Mounting Option 1 :

LOCKING

Min Operating Temperature :

-65 °C

Max Operating Temperature :

150 °C

Color :

Natural

Dielectric Withstanding Voltage :

750VAC V

Wire Gauge :

-

Polarization Key :

POLARIZED HOUSING

Reach Compliance Code :

Compliant

Contact Type :

Female Socket

Features :

-

HTS Code :

8536.69.40.40

Max Power Dissipation :

2 W

Number of Rows :

2

Wire Type :

Ribbon Cable

Total Number of Contacts :

4

Contact Finish :

Tin
