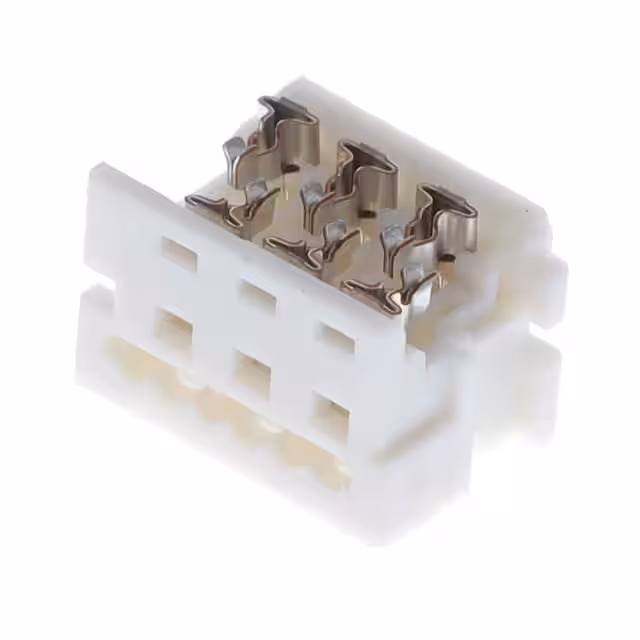

CA3306P10I0-NH

Manufacturer :

CviLux

Product Category :

Free Hanging, Panel Mount

Series :

CA33

Termination Type :

IDC

Withdrawl Force-Min :

.973 N

Wire Gauge :

-

Package :

Tube

Contact Finish Thickness :

30.0µin (0.76µm)

Fastening Type :

-

HTS Code :

8536.69.40.40

Pitch :

0.050 (1.27mm)

Rated Current (Signal) :

1.2 A

Contact Finish :

Tin

Row Spacing :

-

Reach Compliance Code :

Compliant

Features :

-

Number of Positions :

6

Polarization Key :

POLARIZED HOUSING

Connector Type :

BOARD CONNECTOR

Insertion Force-Max :

4.8928 N

Cable Termination :

IDC

Body/Shell Style :

Receptacle

Number of Rows :

2

Reference Standard :

UL

Color :

Natural

Insulator Color :

Natural

Body Breadth :

0.276 inch

Contact Pattern :

STAGGERED

Contact Type :

Female Socket

ECCN Code :

EAR99

Mating Contact Pitch :

0.1 inch

Mounting Type :

CABLE

Wire Type :

Ribbon Cable

Body Depth :

0.252 inch

Dielectric Withstanding Voltage :

750VAC V

Total Number of Contacts :

6

Insulation Resistance :

1000000000 Ω

Contact Material :

Phosphor Bronze

Mounting Option 1 :

LOCKING

Plating Thickness :

30u inch

Reliability :

COMMERCIAL

Contact Resistance :

15 mΩ

Product Status :

Active

Contact Gender :

Male
