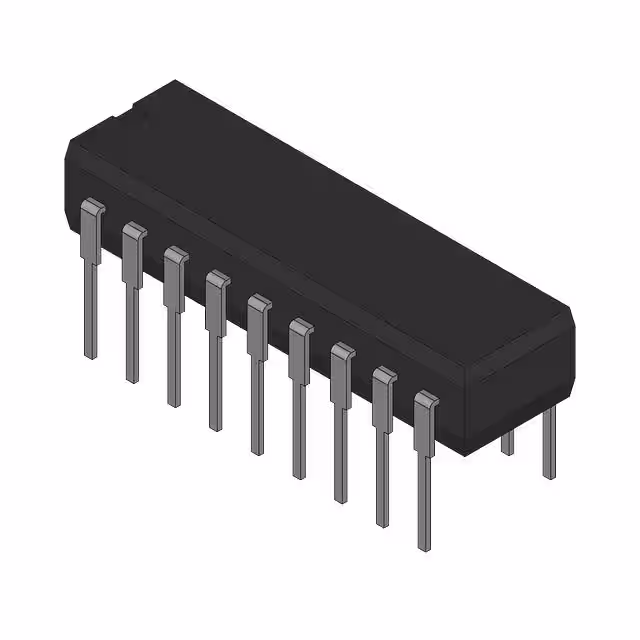

CA3306D

Manufacturer :

Rochester Electronics

Product Category :

Analog to Digital Converters (ADC)

Output Bit Code :

BINARY

Terminal Position :

Dual

Qualification Status :

Not Qualified

Terminal Finish :

TIN LEAD

Package Shape :

RECTANGULAR

Temperature Grade :

Military

Number of Bits :

6

JESD-609 Code :

e0

Analog Input Voltage-Max :

4.8 V

Output Format :

PARALLEL, WORD

HTS Code :

8542.39.00.01

Pin Count :

18

Number of Functions :

1

Terminal Form :

THROUGH-HOLE

Converter Type :

ADC, FLASH METHOD

Seated Height-Max :

5.08 mm

Width :

7.62 mm

Terminal Pitch :

2.54 mm

Power Supplies :

5 V

Number of Analog In Channels :

1

Number of Terminals :

18

Conversion Time-Max :

0.67 µs

Pbfree Code :

No

Reach Compliance Code :

Unknown

Surface Mount :

No

Screening Level :

MIL-STD-883 Class B (Modified)

Linearity Error-Max (EL) :

0.7812%

ECCN Code :

3A001.A.2.C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-30 Code :

R-CDIP-T18
