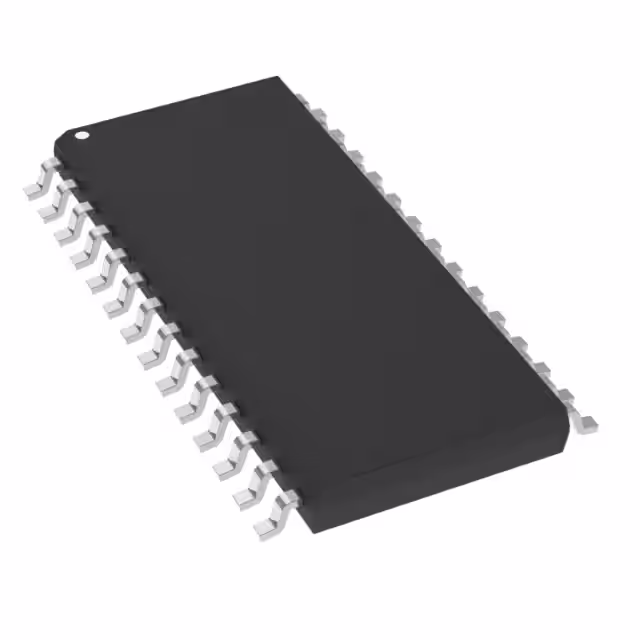

CS8401A-IS

Manufacturer :

Cirrus Logic

Product Category :

Audio Special Purpose

Seated Height-Max :

2.67 mm

Number of Functions :

1

Temperature Grade :

Industrial

Supply Voltage-Min (Vsup) :

4.5 V

Terminal Finish :

TIN LEAD

Product Status :

Active

Supply Voltage-Max (Vsup) :

5.5 V

Number of Terminals :

24

Operating Supply Voltage :

4.5, 5.5 V

Technology :

CMOS

Qualification Status :

COMMERCIAL

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Interface :

Serial

Terminal Form :

Gull wing

Number of Transmitters :

1

JESD-609 Code :

e0

Specifications :

-

Number of Channels :

2

Series :

-

Voltage - Supply :

4.5V ~ 5.5V

Operating Supply Current :

5 mA

Supplier Package :

SOIC

Type :

Digital Audio Transmitter

Package :

Bulk

Surface Mount :

yes

Pin Count :

24

Protocols Supported :

RS422

Power Supply Type :

Single

Applications :

Audio Systems

Package / Case :

24-SOIC (0.295, 7.50mm Width)

Terminal Pitch :

1.27 mm

Operating Temperature :

-40 to 85 °C

JESD-30 Code :

R-PDSO-G24

Consumer IC Type :

CONSUMER CIRCUIT

Length :

15.24 mm

Width :

7.49 mm

Supplier Device Package :

24-SOIC

Manufacturer :

Rochester Electronics LLC

Package Shape :

RECTANGULAR

Mounting Type :

Surface Mount

Reach Compliance Code :

Unknown

Mounting :

Surface Mount

Pbfree Code :

No

Terminal Position :

Dual

Function :

Audio Transmitter
