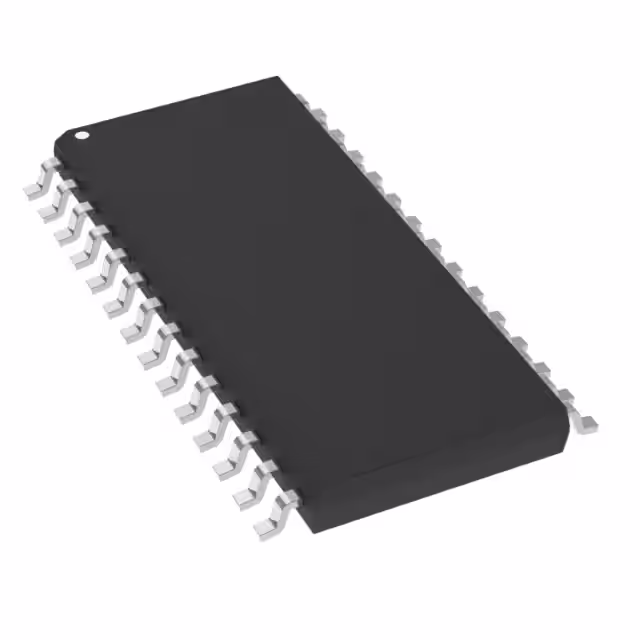

CS8406-IS

Manufacturer :

Cirrus Logic

Product Category :

Audio Special Purpose

Pin Count :

28

Series :

-

Number of Terminals :

28

Width :

7.5 mm

Package :

Bulk

Package / Case :

28-SOIC (0.295, 7.50mm Width)

Seated Height-Max :

2.65 mm

RoHS :

Non-Compliant

Consumer IC Type :

CONSUMER CIRCUIT

Supply Voltage-Max (Vsup) :

5.25 V

Specifications :

-

Applications :

Automotive Audio, Communications Systems, Digital Recording Systems, Musical Instruments, Signal Mixing

Product Status :

Active

Number of Functions :

1

Interface :

I²C, SPI

Pbfree Code :

No

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting Type :

Surface Mount

Function :

Audio Transmitter

Package Shape :

RECTANGULAR

Number of Channels :

1

Terminal Pitch :

1.27 mm

JESD-609 Code :

e0

Length :

17.9 mm

Temperature Grade :

Industrial

Supplier Device Package :

28-SOIC

Reach Compliance Code :

Unknown

Supply Voltage-Min (Vsup) :

3.14 V

Additional Feature :

IT ALSO REQUIRES 3.135V TO 5.5V SUPPLY

Terminal Form :

Gull wing

Voltage - Supply :

3.14V ~ 5.25V

Manufacturer :

Rochester Electronics LLC

JESD-30 Code :

R-PDSO-G28

Terminal Finish :

TIN LEAD

Qualification Status :

COMMERCIAL

Terminal Position :

Dual

Technology :

CMOS

Surface Mount :

yes

Operating Temperature :

-40°C ~ 85°C (TA)
