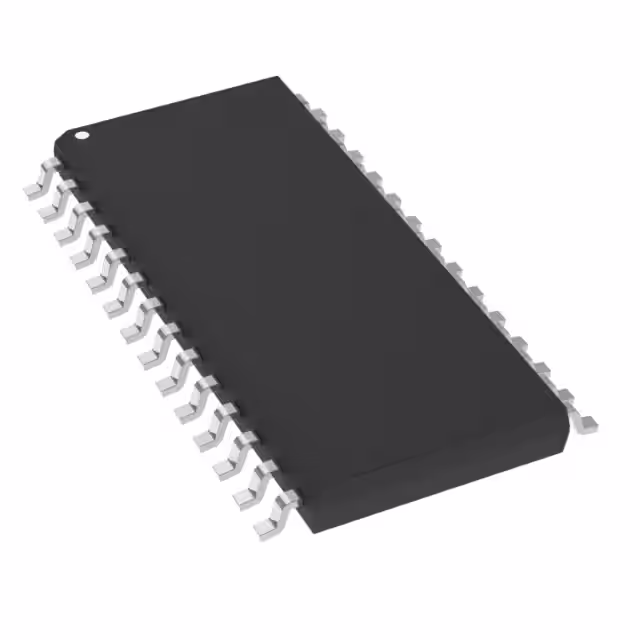

CS8405A-CS

Manufacturer :

Cirrus Logic

Product Category :

Audio Special Purpose

Package :

Bulk

Technology :

CMOS

Number of Terminals :

28

Supply Voltage-Min (Vsup) :

2.85 V

Mounting Type :

Surface Mount

Voltage - Supply :

4.5V ~ 5.5V

Surface Mount :

yes

Width :

7.5 mm

Pin Count :

28

Power Supply Type :

Dual

Number of Channels :

1

Number of Functions :

1

Type :

Digital Audio Interface Transceiver

Reach Compliance Code :

Unknown

Pbfree Code :

No

Number of Receivers :

1

Length :

17.9 mm

Seated Height-Max :

2.65 mm

Manufacturer :

Rochester Electronics LLC

Terminal Form :

Gull wing

Supply Voltage-Max (Vsup) :

5.5 V

Function :

Audio Transmitter

Supplier Device Package :

28-SOIC

Mounting :

Surface Mount

Product Status :

Active

Qualification Status :

COMMERCIAL

Consumer IC Type :

CONSUMER CIRCUIT

Temperature Grade :

COMMERCIAL

JESD-609 Code :

e0

Terminal Pitch :

1.27 mm

Additional Feature :

IT ALSO REQUIRES 4.5V TO 5.5V SUPPLY

Supplier Package :

SOIC

Terminal Position :

Dual

Protocols Supported :

AES3/IEC-60958/EIAJ CP1201/S/PDIF

Operating Supply Current :

6.6/44.8/76.6 mA

Series :

-

Package Shape :

RECTANGULAR

Interface :

I²C, SPI

Package / Case :

28-SOIC (0.295, 7.50mm Width)

Peak Reflow Temperature (Cel) :

240

Number of Transmitters :

1

Specifications :

-

Terminal Finish :

TIN LEAD

Operating Temperature :

-10 to 70 °C

Applications :

Digital Recording Systems, Musical Instruments, Signal Mixing

JESD-30 Code :

R-PDSO-G28
