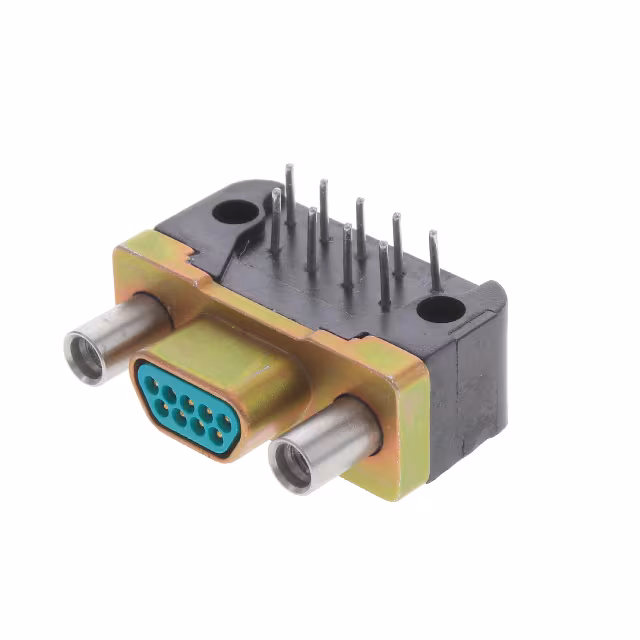

DCCM9PBSPN
Or copy the link below:
- Mfr.Part #
- DCCM9PBSPN
- Manufacturer
- Cinch Connectivity Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN MICRO-D PLUG 9POS VERT SLDR
- Stock
- 28,067
- In Stock ：
- 28,067
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cinch Connectivity Solutions
- Product Category :
- D-Sub Connector Assemblies
- RoHS Status :
- RoHS Compliant
- Insulation Material :
- GLASS FILLED DIALLYL PHTHALATE
- Material Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 8mOhm
- Flange Feature :
- Mating Side, Female Screwlock
- Series :
- Dura-Con™
- Contact Material :
- COPPER ALLOY
- Contact Form :
- Machined
- Insulation Resistance :
- 5000000000Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Dielectric Material :
- Diallyl Phthalate (DAP), Glass Filled
- Current Rating (Amps) :
- 3A
- Number Of PCB Rows :
- 2
- Number of Positions :
- 9
- Additional Feature :
- ENVIRONMENTAL CLASS
- Total Number of Contacts :
- 9
- Mating Contact Pitch :
- 0.05 inch
- Shell Material, Finish :
- Aluminum Alloy, Nickel Plated, Electroless
- Connector Style :
- D-Type, Micro-D
- Mating Contact Row Spacing :
- 0.05 inch
- Mounting Option 2 :
- JACKPOST
- Shell Size, Connector Layout :
- 0.050 Pitch x 0.043 Row to Row
- Insertion Force-Max :
- 1.668 N
- Number of Rows :
- 2
- Packaging :
- Bulk
- Body Depth :
- 0.355 inch
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Reliability :
- COMMERCIAL
- PCB Contact Pattern :
- STAGGERED
- Termination :
- Solder
- Contact Type :
- Signal
- Mounting Type :
- Through Hole
- Contact Finish :
- Gold
- Dielectric Withstanding Voltage :
- 600VAC V
- Factory Lead Time :
- 31 Weeks
- Body Breadth :
- 0.308 inch
- Plating Thickness :
- 50μin
- Reference Standard :
- UL
- Feature :
- Shielded
- Connector Type :
- Plug, Male Pins
- Operating Temperature :
- -55°C~135°C
- Datasheets
- DCCM9PBSPN
Dura-Con™ Series D-Type, Micro-D Plug, Male Pins 9-Position Signal Solder 0.050 Pitch x 0.043 Row to Row Through Hole Copper Alloy Gold Aluminum Alloy, Nickel Plated, Electroless
DCCM9PBSPN Overview
Packaging for this item is Plug, Male Pins.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Dura-Con™ Series.Among other features are ENVIRONMENTAL CLASS, to name only a few.It is more powerful in many ways due to its Shielded feature.It operates at an operating temperature of -55°C~135°C.
DCCM9PBSPN Features
Dura-Con™ series
DCCM9PBSPN Applications
There are a lot of Cinch Connectivity Solutions
DCCM9PBSPN D-Sub Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
