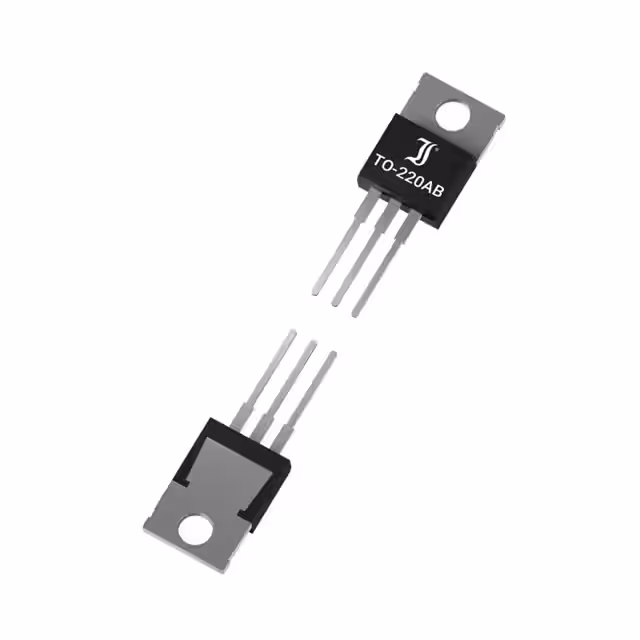

DIT120N08

Manufacturer :

Diotec Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

PPAP :

No

Maximum Operating Temperature (°C) :

175

Automotive :

No

Maximum Power Dissipation (mW) :

220000

Channel Type :

N

Typical Turn-Off Delay Time (ns) :

91

Configuration :

Single

Maximum Drain Source Voltage (V) :

80

Package Width :

4.5

Typical Fall Time (ns) :

39

PCB changed :

3

Typical Gate Charge @ Vgs (nC) :

163@10V

Maximum Continuous Drain Current (A) :

120

Typical Turn-On Delay Time (ns) :

26

Supplier Temperature Grade :

COMMERCIAL

Supplier Package :

TO-220AB

Mounting :

Through Hole

Typical Input Capacitance @ Vds (pF) :

6500@25V

SVHC :

yes

Number of Elements per Chip :

1

Category :

Power MOSFET

Package Height :

8.7

EU RoHS :

Compliant with Exemption

Maximum Drain Source Resistance (mOhm) :

6@10V

Pin Count :

3

Package Length :

10.1

Packaging :

Tube

Typical Gate Charge @ 10V (nC) :

163

ECCN (US) :

EAR99

HTS :

8541.29.00.95

Minimum Operating Temperature (°C) :

-55

Maximum Gate Source Voltage (V) :

±20

Tab :

Tab

Typical Rise Time (ns) :

24

Channel Mode :

Enhancement
