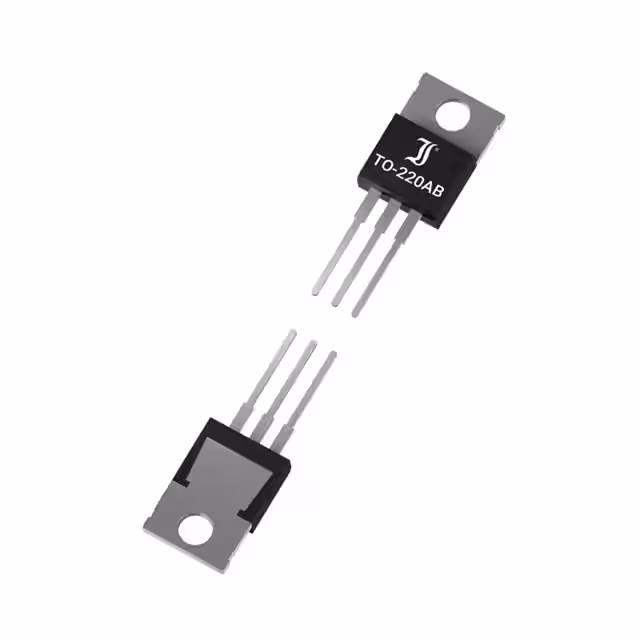

DIT195N08

Manufacturer :

Diotec Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Automotive :

No

Package Width :

4.5

Maximum Drain Source Resistance (mOhm) :

4.95@10V

Typical Input Capacitance @ Vds (pF) :

7600@25V

Maximum Continuous Drain Current (A) :

195

Minimum Operating Temperature (°C) :

-55

HTS :

8541.29.00.95

Typical Fall Time (ns) :

78

Package Length :

10.1

Typical Gate Charge @ Vgs (nC) :

140@10V

PPAP :

No

Channel Mode :

Enhancement

Maximum Operating Temperature (°C) :

150

Supplier Temperature Grade :

COMMERCIAL

EU RoHS :

Compliant with Exemption

PCB changed :

3

Typical Turn-Off Delay Time (ns) :

84

Number of Elements per Chip :

1

Pin Count :

3

Mounting :

Through Hole

Packaging :

Cardboard|Tube

Package Height :

8.7

Typical Turn-On Delay Time (ns) :

23

Channel Type :

N

Tab :

Tab

Maximum Drain Source Voltage (V) :

85

Typical Gate Charge @ 10V (nC) :

140

Configuration :

Single

Category :

Power MOSFET

ECCN (US) :

EAR99

Maximum Gate Source Voltage (V) :

±20

Typical Rise Time (ns) :

124

Maximum Power Dissipation (mW) :

300000

Supplier Package :

TO-220AB
