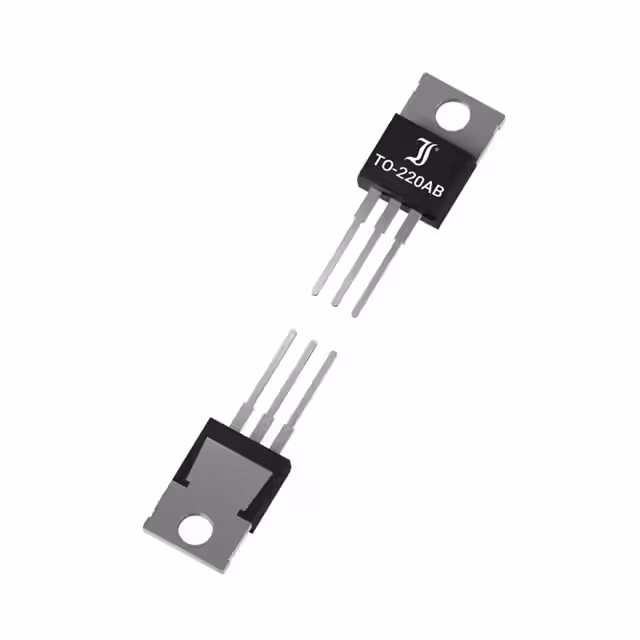

DIT150N03

Manufacturer :

Diotec Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Typical Gate Charge @ Vgs (nC) :

38@10V

Category :

Power MOSFET

Typical Rise Time (ns) :

24

Minimum Operating Temperature (°C) :

-55

PCB changed :

3

Typical Turn-Off Delay Time (ns) :

91

Package Length :

10.1

Configuration :

Single

SVHC :

yes

Typical Input Capacitance @ Vds (pF) :

5000@25V

Maximum Continuous Drain Current (A) :

150

Package Height :

8.7

Maximum Drain Source Voltage (V) :

30

Supplier Package :

TO-220AB

EU RoHS :

Compliant with Exemption

Maximum Operating Temperature (°C) :

175

Typical Turn-On Delay Time (ns) :

26

ECCN (US) :

EAR99

Package Width :

4.5

Tab :

Tab

Number of Elements per Chip :

1

Maximum Power Dissipation (mW) :

130000

Channel Type :

N

Pin Count :

3

Supplier Temperature Grade :

COMMERCIAL

Typical Fall Time (ns) :

39

PPAP :

No

Packaging :

Tube

Mounting :

Through Hole

Channel Mode :

Enhancement

Automotive :

No

Typical Gate Charge @ 10V (nC) :

38

HTS :

8541.29.00.95

Maximum Gate Source Voltage (V) :

±20
