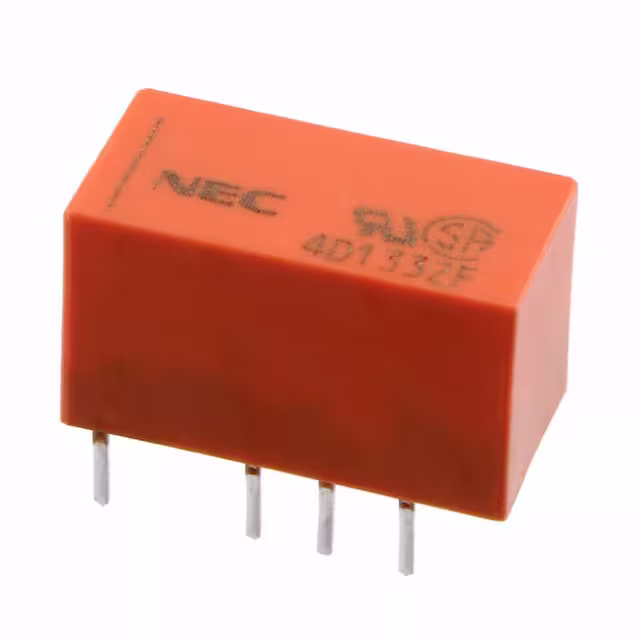

EC2-24SNU

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Max Voltage Rating (DC) :

220 V

Contact Material :

Gold, Silver

Coil Power :

100 mW

Radiation Hardening :

No

Min Operating Temperature :

-40 °C

Height :

9.4 mm

Coil Resistance :

5.76 kΩ

REACH SVHC :

No SVHC

Max Current Rating :

2 A

Mount :

PCB, Through Hole

Width :

7.5 mm

Current Rating :

2 A

Operate Time :

2 ms

Release Time :

1 ms

Length :

15 mm

Relay Type :

GENERAL PURPOSE

Number of Poles :

1

Coil Voltage (DC) :

24 V

RoHS :

Compliant

Power Consumption :

140 mW

Contact Current Rating :

2 A

Throw Configuration :

DPDT

Max Operating Temperature :

85 °C

Termination :

PC Pin

Coil Current :

4.2 mA

Max Voltage Rating (AC) :

250 V

Depth :

7.5 mm

Number of Pins :

8

Coil Type :

Latching, Single Coil
