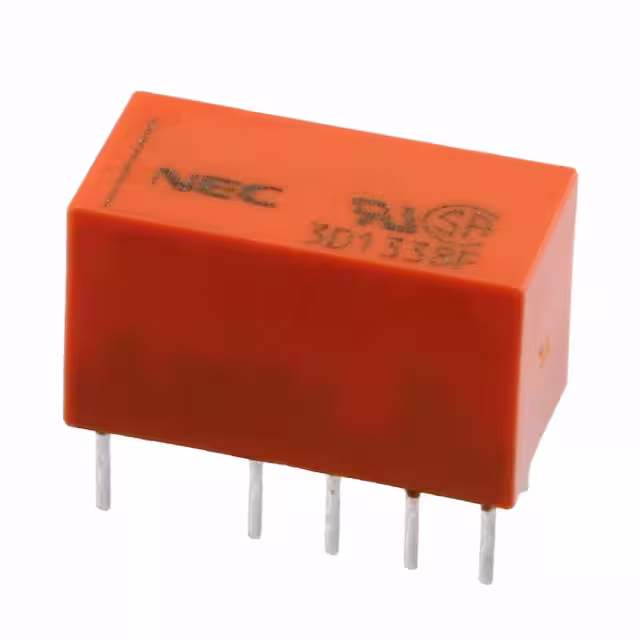

EC2-5TNU

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Max Operating Temperature :

85 °C

Length :

15 mm

Radiation Hardening :

No

Release Time :

1 ms

Coil Voltage (DC) :

5 V

Coil Resistance :

178 Ω

Termination :

PC Pin

Coil Power :

140 mW

Contact Current Rating :

2 A

Operate Time :

2 ms

REACH SVHC :

No SVHC

Power Consumption :

140 mW

Throw Configuration :

DPDT

Depth :

7.5 mm

Contact Material :

Gold, Silver

Min Operating Temperature :

-40 °C

Current Rating :

2 A

Number of Poles :

1

Relay Type :

GENERAL PURPOSE

RoHS :

Compliant

Max Current Rating :

2 A

Max Voltage Rating (DC) :

220 V

Number of Pins :

10

Max Voltage Rating (AC) :

250 V

Height :

9.4 mm

Coil Current :

28 mA

Mount :

PCB, Through Hole

Coil Type :

Latching, Dual Coil
