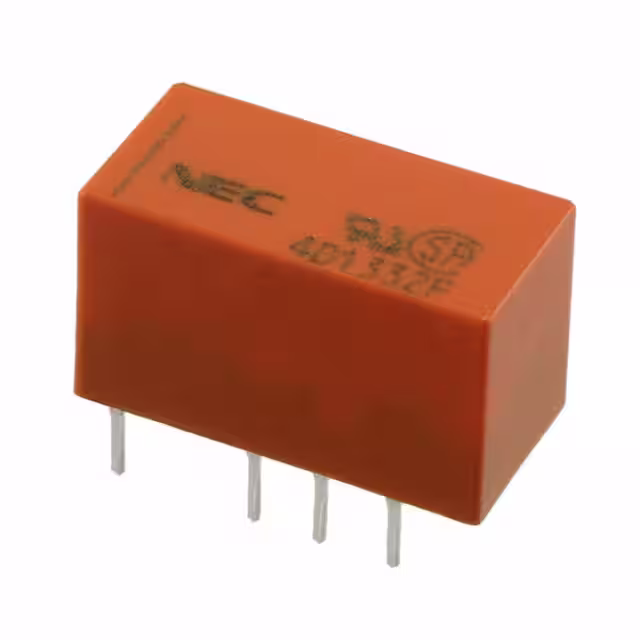

EC2-9NU

Manufacturer :

KEMET

Product Category :

Signal Relays, Up to 2 Amps

Body Height :

9.4

Release Time :

1

Relay Action :

Momentary

Coil Voltage(DC)-Max :

9

Operate Time :

2

Contact Voltage(AC)-Max :

125

Relay Type :

POWER/SIGNAL RELAY

Body Length or Diameter :

15

Physical Dimension :

15mm x 7.5mm x 9.4mm

Insulation Resistance :

1000000000

Relay Function :

DPDT

Coil Current(DC)-Max :

.016

Weight :

1.9

Contact Voltage(DC)-Max :

30

Dielectric Strength Between Coil and Contacts :

1500

Coil/Input Supply Type :

DC

Input Switching Control Type :

Random

Contact Current(AC)-Max :

.5

Body Breadth :

7.5

Dielectric Strength Between Open Contacts :

1000

Coil Operate Voltage(DC) :

6.75

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Series :

EC2

End Contact Material :

Silver Alloy

Termination Type :

Solder

Reference Standard :

CSA; EN; IEC; TUV; UL

Contact/Output Supply Type :

AC/DC

Contact Resistance :

50

PCB Hole Count :

8

Coil Power :

140

Number of Terminals :

8

Coil Release Voltage(DC) :

.9

End Contact Plating :

GOLD ALLOY

Coil Resistance :

579

Relay Form :

2 Form C

Electrical Life :

1000000

Packing Method :

Tube

Contact Current(DC)-Max :

2

Terminal Length :

.003
