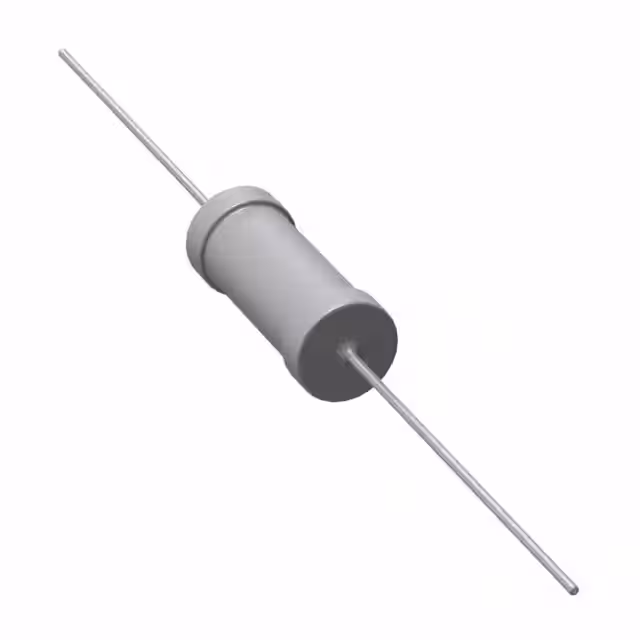

ER58120RJT
Or copy the link below:
- Mfr.Part #
- ER58120RJT
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Axial
- Datasheet
- Download
- Description
- RES 120 OHM 5% 7W AXIAL
- Stock
- 12,162
- In Stock ：
- 12,162
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Through Hole Resistors
- Resistor Type :
- FIXED RESISTOR
- Height Off Base (Height of Fin) :
- 0.790 (20.00mm)
- Brand :
- TE Connectivity / Holsworthy
- Size / Dimension :
- 0.315 Dia x 0.874 L (8.00mm x 22.20mm)
- Type :
- Top Mount
- Series :
- pushPIN™
- Height - Seated (Max) :
- --
- Mounting Style :
- PCB Mount
- Number of Terminations :
- 2
- Thermal Resistance @ Natural :
- --
- Power Rating :
- 7 W
- Reach Compliance Code :
- Compliant
- Product :
- Power Resistors Wirewound Silicone Coated
- Power Dissipation @ Temperature Rise :
- --
- Length :
- 1.181 (30.00mm)
- Package Shape :
- TUBULAR PACKAGE
- Power (Watts) :
- 7W
- Features :
- --
- Operating Temperature :
- -55°C ~ 200°C
- Failure Rate :
- --
- Lead Diameter :
- 0.8 mm
- Operating Temperature Range :
- - 55 C to + 200 C
- Packaging :
- Tape and Box (TB)
- Package Cooled :
- Assorted (BGA, LGA, CPU, ASIC...)
- Construction :
- Cylindrical
- ECCN Code :
- EAR99
- Terminal Shape :
- Wire
- Factory Lead Time :
- 17 Weeks, 6 Days
- Product Category :
- Wirewound Resistors - Through Hole
- Supplier Device Package :
- Axial
- Package Length :
- 22.2 mm
- Composition :
- Wirewound
- Number of Terminals :
- 2
- Attachment Method :
- Push Pin
- Package / Case :
- Axial
- Temperature Coefficient :
- 0/ +60ppm/°C
- Voltage Rating :
- 200 V
- Material :
- Aluminum
- Product Type :
- Wirewound Resistors
- Manufacturer :
- TE Connectivity
- Termination Style :
- Axial
- Product Status :
- Active
- Package :
- Tape and Box (TB)
- Subcategory :
- Resistors
- Rated Power Dissipation (P) :
- 7 W
- Mounting Feature :
- THROUGH HOLE MOUNT
- Material Finish :
- Blue Anodized
- Base Product Number :
- ER58
- Width :
- 1.181 (30.00mm)
- Shape :
- Square, Fins
- HTS Code :
- 8533.21.00.80
- Resistance :
- 120 Ohms
- Diameter :
- --
- Working Voltage :
- 200 V
- Minimum Operating Temperature :
- - 55 C
- Technology :
- Wirewound
- Pbfree Code :
- yes
- Surface Mount :
- No
- Maximum Operating Temperature :
- + 200 C
- Packing Method :
- Ammo Pack
- Thermal Resistance @ Forced Air Flow :
- 7.52°C/W @ 100 LFM
- Tolerance :
- ±5%
- Datasheets
- ER58120RJT
FIXED RESISTOR, 120 Ohms, 7W, Wirewound,
