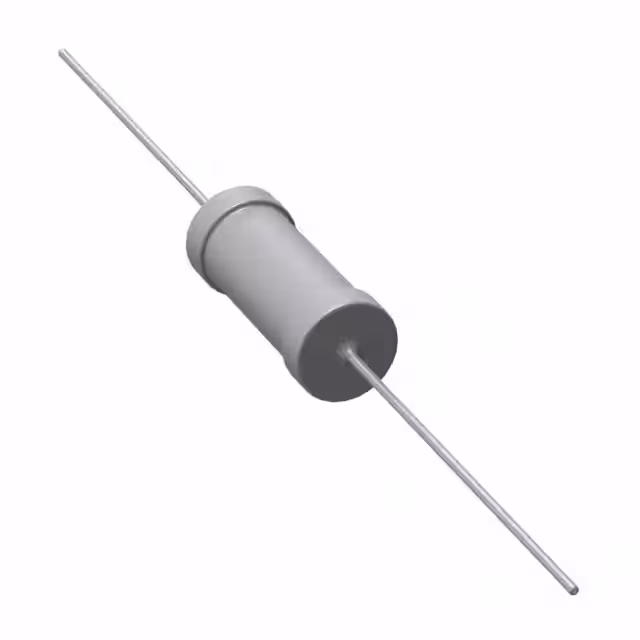

ER58180RJT

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Height - Seated (Max) :

--

HTS Code :

8533.21.00.80

Power (Watts) :

7W

Package Shape :

TUBULAR PACKAGE

Mounting Feature :

THROUGH HOLE MOUNT

Maximum Operating Temperature :

+ 200 C

Voltage Rating :

200 V

Surface Mount :

No

RoHS :

Details

Packaging :

Tape and Box (TB)

Reach Compliance Code :

Compliant

Minimum Operating Temperature :

- 55 C

Temperature Coefficient :

100 ppm/°C

Package Length :

22.2 mm

Lead Diameter :

0.8 mm

Package / Case :

Axial

Product Category :

Wirewound Resistors - Through Hole

Type :

High Power Resistors

Power Rating :

7 W

Working Voltage :

200 V

Width :

-

Termination Style :

Axial

ECCN Code :

EAR99

Operating Temperature Range :

- 55 C to + 200 C

Packing Method :

Ammo Pack

Length :

22.2 mm

Rated Power Dissipation (P) :

7 W

Construction :

Cylindrical

Operating Temperature :

-55°C ~ 200°C

Terminal Shape :

Wire

Supplier Device Package :

Axial

Size / Dimension :

0.315 Dia x 0.874 L (8.00mm x 22.20mm)

Product Status :

Active

Brand :

TE Connectivity / Holsworthy

Mounting Style :

PCB Mount

Diameter :

8 mm

Number of Terminals :

2

Factory Lead Time :

17 Weeks, 6 Days

Package :

Tape and Box (TB)

Resistor Type :

FIXED RESISTOR

Series :

ER, CGS

Features :

--

Height :

-

Product Type :

Wirewound Resistors

Resistance :

180 Ω

Product :

Power Resistors Wirewound Silicone Coated

Number of Terminations :

2

Composition :

Wirewound

Tolerance :

5%

Pbfree Code :

yes

Failure Rate :

--
