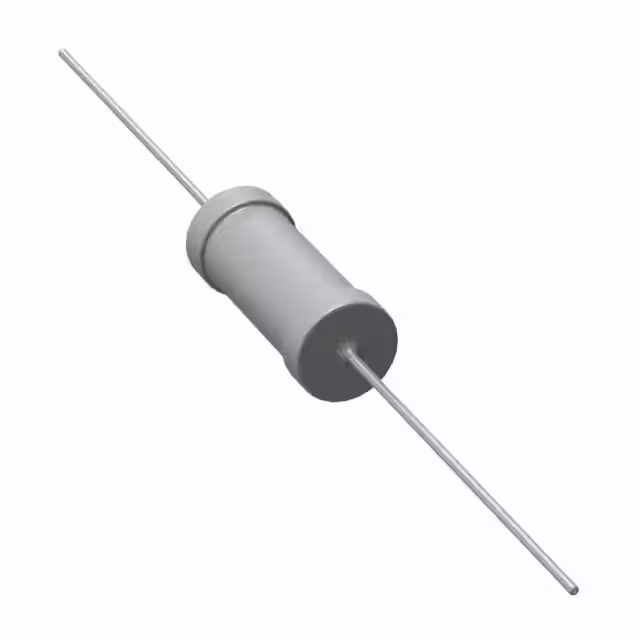

ER5820KDT

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Height - Seated (Max) :

--

Product Status :

Active

Product :

Power Resistors Wirewound Silicone Coated

Packaging :

Tape and Box (TB)

Size / Dimension :

0.315 Dia x 0.874 L (8.00mm x 22.20mm)

Product Category :

Wirewound Resistors - Through Hole

Product Type :

Wirewound Resistors

Lead Diameter :

0.8 mm

Resistor Type :

FIXED RESISTOR

Type :

High Power Resistors

HTS Code :

8533.21.00.80

Packing Method :

Ammo Pack

Tolerance :

±0.5%

Minimum Operating Temperature :

- 55 C

Subcategory :

Resistors

Mounting Style :

PCB Mount

Package :

Tape and Box (TB)

Rated Power Dissipation (P) :

7 W

Brand :

TE Connectivity / Holsworthy

Maximum Operating Temperature :

+ 200 C

Supplier Device Package :

Axial

Terminal Shape :

Wire

Package Shape :

TUBULAR PACKAGE

Resistance :

20 kOhms

Features :

--

Termination Style :

Axial

Length :

22.2 mm

Mounting Feature :

THROUGH HOLE MOUNT

Operating Temperature Range :

- 55 C to + 200 C

Package / Case :

Axial

Failure Rate :

--

Surface Mount :

No

Voltage Rating :

200 V

Number of Terminals :

2

Series :

ER, CGS

Power (Watts) :

7W

Pbfree Code :

yes

Operating Temperature :

-55°C ~ 200°C

Power Rating :

7 W

Width :

8 mm

Number of Terminations :

2

Reach Compliance Code :

Compliant

Composition :

Wirewound

Temperature Coefficient :

0/ +60ppm/°C

Manufacturer :

TE Connectivity

ECCN Code :

EAR99

Technology :

Wirewound

Factory Lead Time :

21 Weeks, 6 Days
