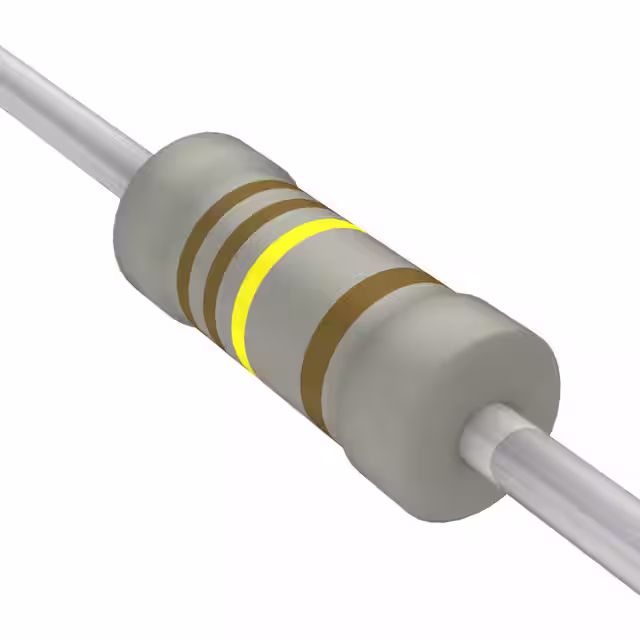

LR1F110K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Rated Power Dissipation (P) :

0.6 W

Terminal Finish :

Tin (Sn)

Product Type :

Metal Film Resistors

Case Style :

Conformal Coated

Maximum Operating Temperature :

+ 155 C

Product Diameter (mm) :

2.3(mm)

Packaging :

Tape and Box (TB)

Operating Temperature :

-55°C ~ 155°C

Number of Terminations :

2

Package :

Tape and Box (TB)

Base Product Number :

LR1F

JESD-609 Code :

e3

Military Standard :

Not Required

Rated Temperature :

70 °C

Operating Temp Range :

-55C to 155C

Mounting Style :

PCB Mount

Subcategory :

Resistors

Power Rating(s) :

0.6(W)

Product Width :

-

Product Length (mm) :

6.2(mm)

Diameter :

2.3 mm

Technology :

Metal Film

Minimum Operating Temperature :

- 55 C

Tolerance :

±1%

Supplier Device Package :

Axial

Product Status :

Active

Product Depth (mm) :

Not Required(mm)

Series :

LR, Neohm

Height - Seated (Max) :

--

Product Height (mm) :

Not Required(mm)

Product :

Metal Film Resistors General Purpose

Terminal Shape :

Wire

Composition :

Metal Film

Length :

6.2 mm

Lead Diameter :

0.55 mm

Resistance :

110 kOhm

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Pbfree Code :

yes

Package / Case :

Axial

Reach Compliance Code :

Compliant

Power Rating :

0.6 W

Failure Rate :

--

Qualification :

-

ECCN Code :

EAR99

Resistor Type :

GENERAL PURPOSE

Type :

Metal Film

Construction :

Cylindrical

Temperature Range @ Derated Power :

70 to 125

Manufacturer :

TE Connectivity

Product Category :

Metal Film Resistors - Through Hole

Number of Terminals :

2

Termination Style :

Axial

Mounting Feature :

THROUGH HOLE MOUNT

Package Length :

6.2 mm

Working Voltage :

350 V

Package Shape :

TUBULAR PACKAGE

Resistance Tolerance :

1

Packing Method :

Ammo Pack

Temperature Coefficient :

50.0000 ppm/°C

Factory Lead Time :

15 Weeks, 6 Days

Flame-Proof Support :

No

Brand :

TE Connectivity / Holsworthy

RoHS :

Details

Features :

--

Surface Mount :

No

Voltage Rating :

350V

Lead Spacing (nom) :

Not Required(mm)

Tolerance (+ or -) :

1%

Additional Feature :

PRECISION

Power (Watts) :

0.6W

Product Length :

6.2
