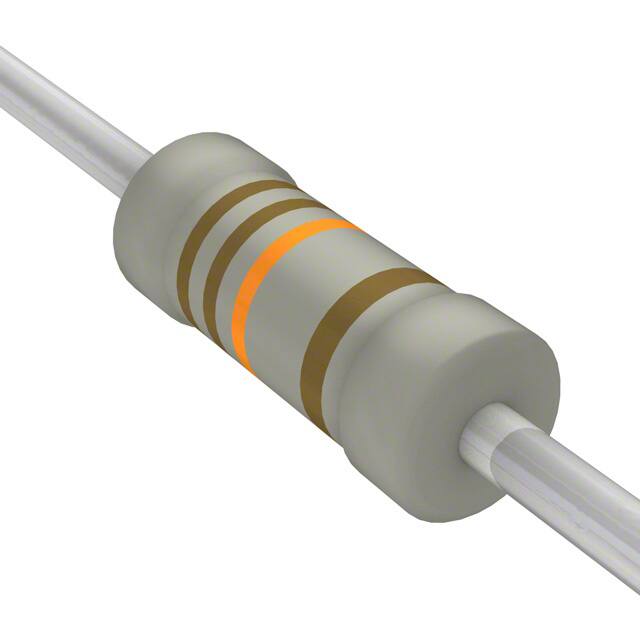

LR1F11K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Package Shape :

TUBULAR PACKAGE

Factory Lead Time :

15 Weeks, 6 Days

Mounting Feature :

THROUGH HOLE MOUNT

Working Voltage :

350 V

Type :

Metal Film

Lead Spacing (nom) :

Not Required(mm)

Product Diameter (mm) :

2.3(mm)

Product Type :

Metal Film Resistors

Length :

6.2 mm

Product Length :

6.2

Number of Terminals :

2

Product Depth (mm) :

Not Required(mm)

Operating Temp Range :

-55C to 155C

ECCN Code :

EAR99

Rated Temperature :

70 °C

Features :

--

Operating Temperature :

-55°C ~ 155°C

Reach Compliance Code :

Compliant

Product Length (mm) :

6.2(mm)

Terminal Shape :

Wire

Additional Feature :

PRECISION

Product Category :

Metal Film Resistors - Through Hole

Brand :

TE Connectivity / Holsworthy

Tolerance :

±1%

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Temperature Range @ Derated Power :

70 to 125

Product Height (mm) :

Not Required(mm)

Power (Watts) :

0.6W

Flame-Proof Support :

No

Product Status :

Active

Mounting Style :

PCB Mount

Diameter :

2.3 mm

Minimum Operating Temperature :

-55°C

RoHS :

Details

Qualification :

-

Terminal Finish :

Tin (Sn)

Subcategory :

Resistors

Military Standard :

Not Required

Resistance Tolerance :

1

Number of Terminations :

2

Resistance :

11 kOhm

Surface Mount :

No

Packaging :

Tape and Box (TB)

Case Style :

Conformal Coated

Product :

Metal Film Resistors General Purpose

Package / Case :

Axial

Packing Method :

Ammo Pack

Height - Seated (Max) :

--

Technology :

Metal Film

Resistor Type :

GENERAL PURPOSE

Maximum Operating Temperature :

+155°C

Lead Diameter :

0.55 mm

Termination Style :

Axial

Supplier Device Package :

Axial

Construction :

Cylindrical

Pbfree Code :

yes

Voltage Rating :

350 V

Power Rating :

0.6 W

Temperature Coefficient :

50.0000 ppm/°C

JESD-609 Code :

e3

Package Length :

6.2 mm

Rated Power Dissipation (P) :

0.6 W

Manufacturer :

TE Connectivity

Tolerance (+ or -) :

1%

Series :

LR, Neohm

Package :

Tape and Box (TB)

Failure Rate :

--

Power Rating(s) :

0.6(W)

Composition :

Metal Film

Product Width :

-
