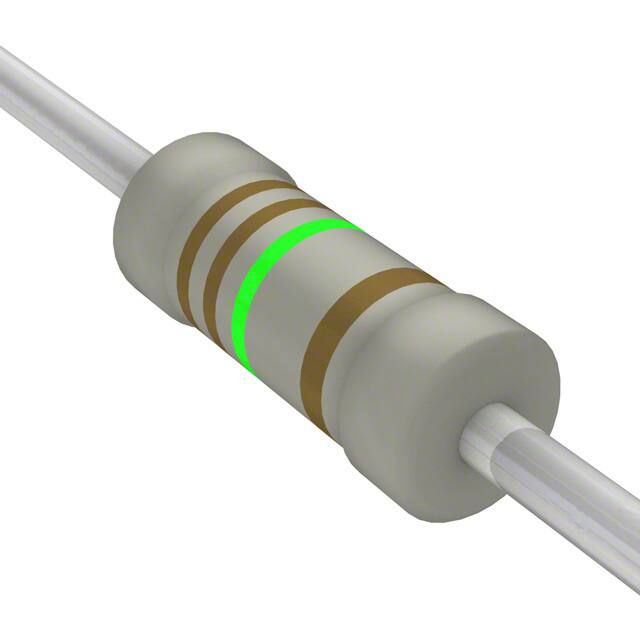

LR1F115K

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Rated Temperature :

70 °C

Operating Temperature :

-55°C ~ 155°C

JESD-609 Code :

e3

Series :

LR, Neohm

Terminal Finish :

Tin (Sn)

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

ECCN Code :

EAR99

Brand :

TE Connectivity / Holsworthy

Temperature Coefficient :

50 ppm/°C

Base Product Number :

LR1F

Product Status :

Active

Termination Style :

Axial

Height - Seated (Max) :

--

Product Category :

Metal Film Resistors - Through Hole

Failure Rate :

--

Supplier Device Package :

Axial

Features :

--

Tolerance :

1%

Maximum Operating Temperature :

+ 155 C

Resistance :

115000 Ω

Rated Power Dissipation (P) :

0.6 W

Diameter :

2.3 mm

Additional Feature :

PRECISION

Terminal Shape :

Wire

Working Voltage :

350 V

Composition :

Metal Film

Pbfree Code :

yes

Lead Diameter :

0.55 mm

Length :

6.2 mm

Package Shape :

TUBULAR PACKAGE

Product Type :

Metal Film Resistors

Packaging :

Tape and Box (TB)

Packing Method :

Ammo Pack

Number of Terminals :

2

Minimum Operating Temperature :

- 55 C

Mounting Feature :

THROUGH HOLE MOUNT

Construction :

Tubular

Power Rating :

600 mW

Reach Compliance Code :

Compliant

Resistor Type :

FIXED RESISTOR

Mounting Style :

PCB Mount

Package :

Tape and Box (TB)

Surface Mount :

No

Number of Terminations :

2

Package / Case :

Axial

Package Length :

6.2 mm

Power (Watts) :

0.6W
