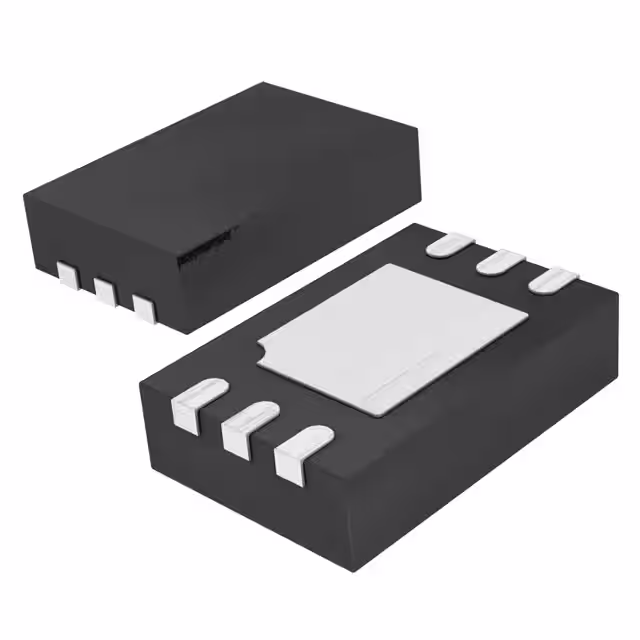

LT6000IDCB

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Surface Mount :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gain Bandwidth Product :

60kHz

Number of Circuits :

1

Terminal Form :

NO LEAD

Peak Reflow Temperature (Cel) :

235

Voltage - Supply, Single/Dual (±) :

1.8V~18V

Common Mode Rejection Ratio :

96 dB

RoHS Status :

Non-RoHS Compliant

Terminal Finish :

Tin/Lead (Sn/Pb)

Number of Functions :

1

Published :

2001

Low-Bias :

No

Wideband :

No

Operating Temperature :

-40°C~85°C

Number of Terminations :

6

Package / Case :

6-WFDFN Exposed Pad

Micropower :

yes

Terminal Position :

Dual

Current - Output / Channel :

10mA

Unity Gain BW-Nom :

50 kHz

JESD-609 Code :

e0

Programmable Power :

No

Power :

No

ECCN Code :

EAR99

Qualification Status :

Not Qualified

Slew Rate :

0.018V/µs

Height Seated (Max) :

0.8mm

Amplifier Type :

GENERAL PURPOSE

JESD-30 Code :

R-PDSO-N6

Pin Count :

6

Architecture :

VOLTAGE-FEEDBACK

Terminal Pitch :

0.5mm

Packaging :

Tape and Reel (TR)

Length :

3mm

Current - Input Bias :

12nA

Time@Peak Reflow Temperature-Max (s) :

20

Reach Compliance Code :

not_compliant

Supply Voltage :

1.8V

Voltage - Input Offset :

500μV

Mounting Type :

Surface Mount

Low-Offset :

No

Current - Supply :

15µA

Frequency Compensation :

yes

Output Type :

Rail-to-Rail
