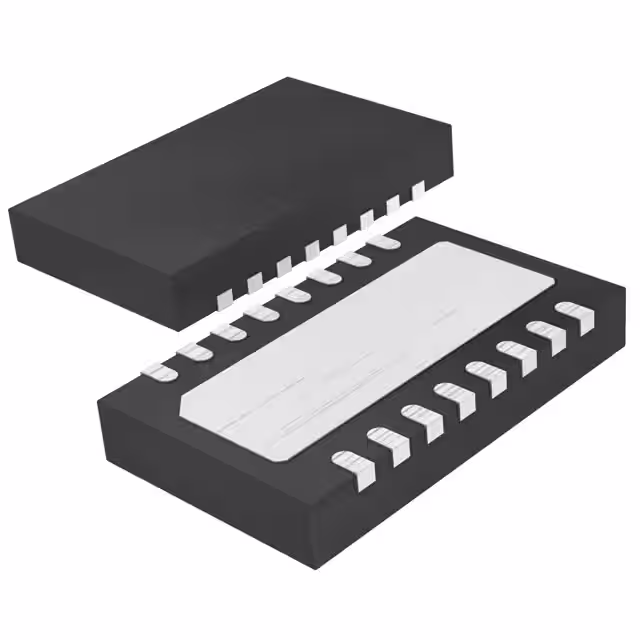

LT6002CDHC#PBF

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Micropower :

yes

Lifecycle Status :

Production (Last Updated: 1 month ago)

Current - Output / Channel :

10 mA

Brand Name :

Linear Technology

Max Operating Temperature :

85 °C

Power Supplies :

1.8/5 V

Slew Rate :

0.018(V/us)

Package / Case :

16-WFDFN Exposed Pad

Time@Peak Reflow Temperature-Max (s) :

30

Pin Count :

16

HTS Code :

8542.33.00.01

Gain Bandwidth Product :

60 kHz

Mounting :

Surface Mount

Supplier Device Package :

16-DFN (5x3)

Package Shape :

RECTANGULAR

Output Type :

Rail-to-Rail

Surface Mount :

yes

Mounting Type :

Surface Mount

Rad Hardened :

No

Seated Height-Max :

0.8 mm

Schedule B :

8542330000

Peak Reflow Temperature (Cel) :

260

Max Supply Voltage :

18 V

Package :

Tube

Average Bias Current-Max (IIB) :

0.01 µA

Base Product Number :

LT6002

Number of Elements :

4

Dual Supply Voltage (Max) :

Not Required(V)

Dual Supply Voltage (Typ) :

Not Required(V)

Power Supply Rejection Ratio :

86(dB)

Packaging :

Rail/Tube

Supply Voltage Limit-Max :

18 V

Slew Rate-Min :

7 V/us

Frequency Compensation :

yes

Technology :

Bipolar

Manufacturer :

Linear Technology

Current - Supply :

13µA (x4 Channels)

Qualification Status :

Not Qualified

Single Supply Voltage (Max) :

18(V)

Lead Free :

Lead Free

Mount :

Surface Mount

Min Supply Voltage :

1.8 V

Operating Supply Current :

20 µA

RoHS :

Compliant

Terminal Position :

Dual

Terminal Form :

NO LEAD

Maximum Input Offset Current :

0.0024@5V@0C TO 70C

Single Supply Voltage (Min) :

1.8(V)

Voltage Gain :

120 dB

Manufacturer Lifecycle Status :

Production (Last Updated: 1 month ago)

Input Offset Voltage (Vos) :

500 µV

Supply Current-Max :

0.096 mA

Architecture :

VOLTAGE-FEEDBACK

Low-Offset :

yes

Amplifier Type :

GENERAL PURPOSE

Type :

Low Power Amplifier

Terminal Finish :

Matte Tin (Sn)

Input Offset Voltage-Max :

1100 µV

Supply Current :

0.072@5V(mA)

Series :

LT®

Common Mode Rejection Ratio :

68(dB)

Number of Functions :

4

Voltage Gain-Min :

10000

Single Supply Voltage (Typ) :

3/5/9/12/15(V)

Dual Supply Voltage (Min) :

Not Required(V)

Length :

5 mm

ECCN Code :

EAR99

Unity Gain Bandwidth Product :

0.06

Terminal Pitch :

0.5 mm

Package Type :

DFN EP

Number of Pins :

16

Shut Down Feature :

No

Product Status :

Active

Temperature Grade :

COMMERCIAL

JESD-30 Code :

R-PDSO-N16

Input Bias Current :

4 nA

Number of Circuits :

4

Current - Input Bias :

2 nA

Width :

3 mm

Input Offset Voltage :

1.3(mV)

Voltage Gain in dB :

120(dB)

Subcategory :

Operational Amplifier

Voltage - Input Offset :

500 µV

Unity Gain BW-Nom :

50 kHz

Reach Compliance Code :

Compliant

Power Supply Requirement :

Single

Operating Temp Range :

0C to 70C

Output Current per Channel :

10 mA

JESD-609 Code :

e3

Power Supply Rejection Ratio (PSRR) :

86 dB

Operating Temperature Classification :

COMMERCIAL

Number of Terminals :

16

Operating Temperature :

-40°C ~ 85°C

Min Operating Temperature :

-40 °C
