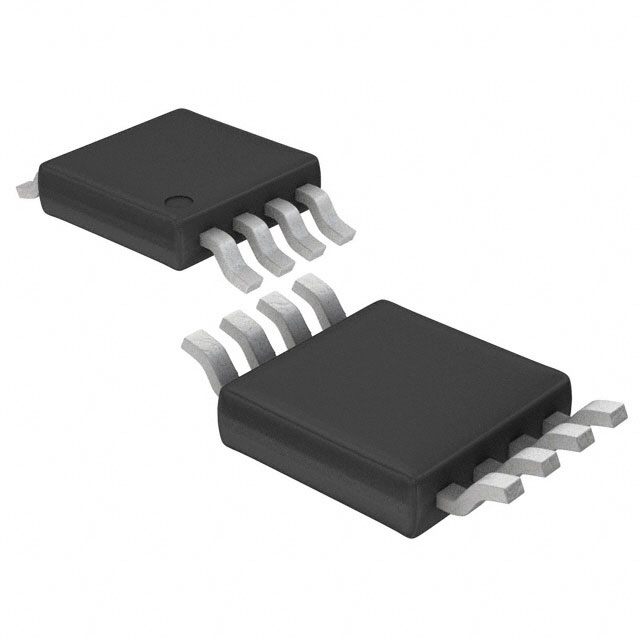

LT6001CMS8#PBF

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Manufacturer :

Linear Technology

Series :

LT®

Length :

3 mm

Reach Compliance Code :

Compliant

Technology :

Bipolar

Frequency Compensation :

yes

Brand Name :

Linear Technology

Package / Case :

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Mounting Type :

Surface Mount

Voltage - Input Offset :

500 µV

Width :

3 mm

Current - Input Bias :

2 nA

Terminal Finish :

Matte Tin (Sn)

Average Bias Current-Max (IIB) :

0.01 µA

Maximum Operating Temperature :

+ 85 C

Number of Circuits :

2

Terminal Position :

Dual

Output Current per Channel :

4 mA

Temperature Grade :

COMMERCIAL

Terminal Pitch :

0.65 mm

Package :

Tube

Output Type :

Rail-to-Rail

Supply Voltage Limit-Max :

18 V

Current - Supply :

13µA (x2 Channels)

Supply Current-Max :

0.048 mA

Shutdown :

No Shutdown

Slew Rate-Min :

7 V/us

HTS Code :

8542.33.00.01

ECCN Code :

EAR99

Architecture :

VOLTAGE-FEEDBACK

Gain Bandwidth Product :

60 kHz

Product Type :

Precision Amplifiers

Micropower :

yes

Number of Terminals :

8

Low-Offset :

yes

Subcategory :

Operational Amplifier

JESD-609 Code :

e3

Mounting Style :

SMD/SMT

Unity Gain BW-Nom :

50 kHz

Terminal Form :

Gull wing

Power Supplies :

1.8/5 V

Number of Channels :

2 Channel

Amplifier Type :

GENERAL PURPOSE

JESD-30 Code :

S-PDSO-G8

Slew Rate :

0.015V/μs

Product Status :

Active

Seated Height-Max :

1.1 mm

Qualification Status :

Not Qualified

Operating Supply Current :

13 uA

Current - Output / Channel :

10 mA

Operating Temperature :

0°C ~ 70°C

Voltage Gain dB :

36 dB

Product :

Operational Amplifiers

Voltage Gain-Min :

10000

Minimum Operating Temperature :

- 40 C

Pin Count :

8

Input Type :

Rail-to-Rail

Supplier Device Package :

8-MSOP

Base Product Number :

LT6001

Peak Reflow Temperature (Cel) :

260

Number of Functions :

2

Package Shape :

Square

Input Offset Voltage-Max :

800 µV

Surface Mount :

yes
