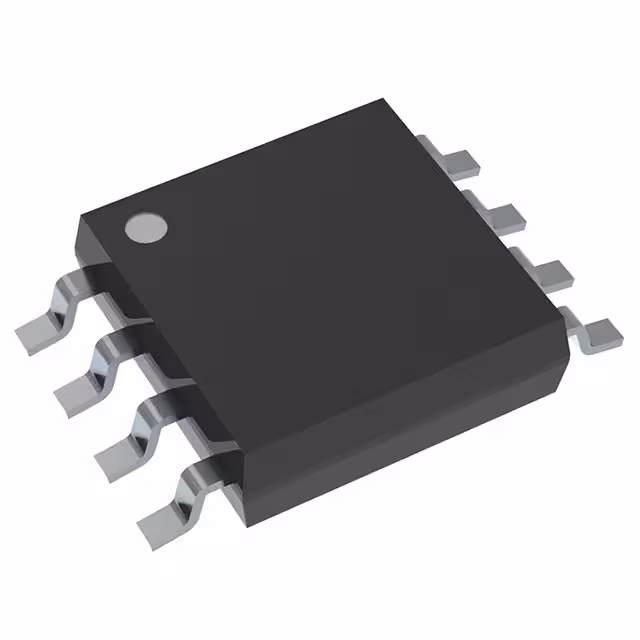

NJM318M
Or copy the link below:
- Mfr.Part #
- NJM318M
- Manufacturer
- Nisshinbo Micro Devices
- Package / Case
- Datasheet
- Download
- Description
- IC OPAMP GP 1 CIRCUIT 8DMP
- Stock
- 4,344
- In Stock ：
- 4,344
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nisshinbo Micro Devices
- Product Category :
- Instrumentation, OP Amps, Buffer Amps
- Pbfree Code :
- yes
- Power Dissipation :
- 300mW
- Gain Bandwidth Product :
- 15MHz
- Common Mode Rejection Ratio :
- 70 dB
- Terminal Position :
- Dual
- Radiation Hardening :
- No
- Length :
- 5mm
- Average Bias Current-Max (IIB) :
- 0.5μA
- Terminal Form :
- Gull wing
- Number of Pins :
- 8
- Pin Count :
- 8
- Bias Current-Max (IIB) @25C :
- 0.5μA
- Architecture :
- VOLTAGE-FEEDBACK
- Amplifier Type :
- Operational Amplifier
- Frequency Compensation :
- yes
- Low-Offset :
- No
- Temperature Grade :
- Industrial
- Peak Reflow Temperature (Cel) :
- 260
- JESD-609 Code :
- e6
- Voltage Gain :
- 106dB
- Mount :
- Surface Mount
- Min Dual Supply Voltage :
- 5V
- RoHS Status :
- RoHS Compliant
- Height Seated (Max) :
- 2mm
- Nominal Supply Current :
- 10mA
- Current - Input Bias :
- 500nA
- Supply Voltage :
- 15V
- Number of Terminations :
- 8
- Operating Supply Voltage :
- 20V
- Max Operating Temperature :
- 85°C
- Terminal Finish :
- Tin/Bismuth (Sn/Bi)
- Neg Supply Voltage-Nom (Vsup) :
- -15V
- Max Dual Supply Voltage :
- 20V
- ECCN Code :
- EAR99
- Number of Functions :
- 1
- Min Operating Temperature :
- -40°C
- Unity Gain BW-Nom :
- 15000 kHz
- Input Offset Voltage (Vos) :
- 10mV
- Slew Rate :
- 70 V/µs
- Number of Channels :
- 1
- Datasheets
- NJM318M
[Instrumentation, OP Amps, Buffer Amps] Overview
Introducing the NJM318M, a cutting-edge integrated circuit op-amp from Nisshinbo Micro Devices. Engineered for precision and reliability, this component redefines performance benchmarks in the realm of instrumentation, operational amplifiers, and buffer amplifiers. With its compact 8DMP package, it seamlessly integrates into various electronic systems, offering unparalleled versatility and efficiency.
NJM318M Features
- High precision: The NJM318M ensures exceptional accuracy in signal processing, making it ideal for critical applications that demand precise measurements.
- Wide bandwidth: With a broad frequency response range, this IC op-amp facilitates seamless signal amplification across diverse electronic circuits.
- Low noise: Experience clear and distortion-free signal amplification, thanks to the NJM318M's low noise performance, enhancing the overall signal integrity.
- Low power consumption: Despite its powerful capabilities, this integrated circuit maintains energy efficiency, conserving power and prolonging battery life in portable devices.
- Robust design: Built to withstand challenging operating conditions, the NJM318M boasts a robust construction, ensuring long-term reliability in demanding environments.
NJM318M Applications
- Medical instrumentation: The NJM318M is indispensable in medical devices such as patient monitors and diagnostic equipment, where precision and reliability are paramount. Its high precision and low noise characteristics enable accurate signal processing, ensuring accurate readings for healthcare professionals.
- Industrial automation: In industrial control systems and automation equipment, the NJM318M plays a crucial role in signal conditioning and amplification. Its wide bandwidth and low power consumption make it suitable for use in sensors, actuators, and control circuits, enhancing operational efficiency and productivity.
- Audio amplification: Audio equipment, including amplifiers and mixing consoles, benefit from the NJM318M's low noise performance and wide bandwidth. Whether in professional studio environments or consumer audio systems, this integrated circuit ensures pristine sound quality and faithful signal reproduction.
