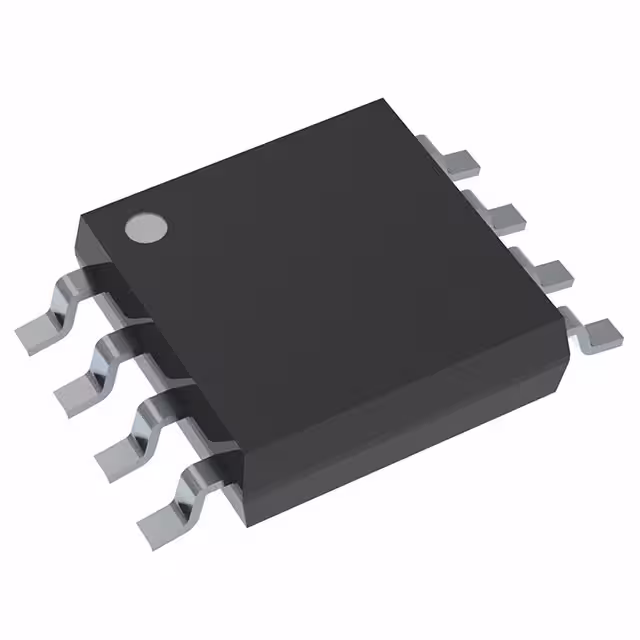

NJM318M-TE1

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Instrumentation, OP Amps, Buffer Amps

Bias Current-Max (IIB) @25C :

0.5 µA

JESD-30 Code :

S-PDSO-G8

Number of Functions :

1

Qualification Status :

Not Qualified

Seated Height-Max :

2 mm

Length :

5 mm

Amplifier Type :

Operational Amplifier

Voltage Gain :

106 dB

Terminal Finish :

Tin/Bismuth (Sn/Bi)

Voltage Gain-Min :

25118.9

Input Offset Voltage-Max :

10000 µV

Neg Supply Voltage-Nom (Vsup) :

-15 V

Slew Rate :

70 V/µs

Power Supplies :

+-15 V

Subcategory :

Operational Amplifier

Max Power Dissipation :

300 mW

Architecture :

VOLTAGE-FEEDBACK

ECCN Code :

EAR99

Average Bias Current-Max (IIB) :

0.5 µA

Max Operating Temperature :

85 °C

Width :

5 mm

Number of Channels :

1

Reach Compliance Code :

Compliant

Gain Bandwidth Product :

15 MHz

Peak Reflow Temperature (Cel) :

260

Frequency Compensation :

yes

Nominal Supply Current :

10 mA

Low-Offset :

No

Supply Voltage Limit-Max :

20 V

Surface Mount :

yes

Number of Terminals :

8

Pin Count :

8

Input Bias Current :

500 nA

Terminal Pitch :

1.27 mm

Manufacturer :

New Japan Radio Co Ltd

Pbfree Code :

yes

Package Shape :

Square

Number of Pins :

8

Technology :

Bipolar

RoHS :

Compliant

Temperature Grade :

COMMERCIAL EXTENDED

Terminal Form :

Gull wing

Slew Rate-Min :

50 V/us

HTS Code :

8542.33.00.01

Unity Gain BW-Nom :

15000 kHz

JESD-609 Code :

e6

Terminal Position :

Dual

Common Mode Rejection Ratio :

70 dB

Supply Current-Max :

10 mA

Packing Method :

Tape and Reel

Input Offset Voltage (Vos) :

10 mV

Common-mode Reject Ratio-Min :

70 dB

Bandwidth :

15 MHz

Min Operating Temperature :

-40 °C
