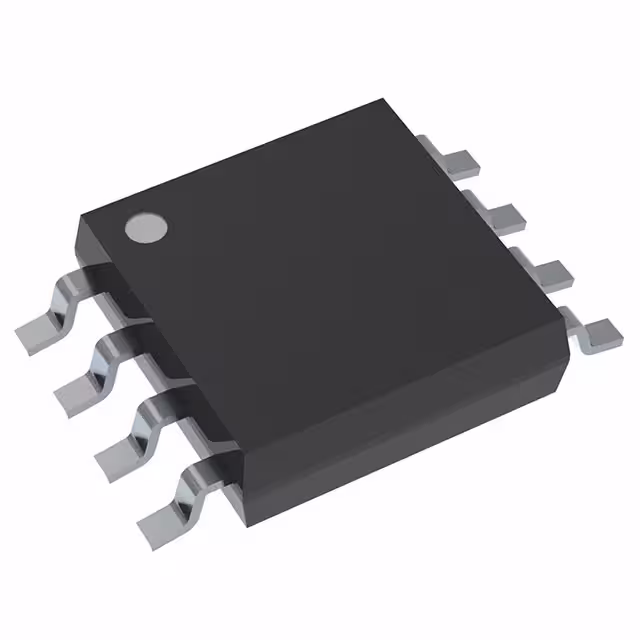

NJM318M-TE3

Manufacturer :

Nisshinbo Micro Devices

Product Category :

Instrumentation, OP Amps, Buffer Amps

Peak Reflow Temperature (Cel) :

260

ECCN Code :

EAR99

Pbfree Code :

yes

Supply Current-Max :

10 mA

Input Offset Voltage-Max :

10000 µV

Amplifier Type :

Operational Amplifier

Voltage Gain-Min :

25118.9

Packing Method :

Tape and Reel

Average Bias Current-Max (IIB) :

0.5 µA

Technology :

Bipolar

HTS Code :

8542.33.00.01

Power Supplies :

+-15 V

Manufacturer :

New Japan Radio Co Ltd

Low-Offset :

No

Reach Compliance Code :

Compliant

Terminal Position :

Dual

Neg Supply Voltage-Nom (Vsup) :

-15 V

Number of Terminals :

8

Terminal Finish :

Tin/Bismuth (Sn/Bi)

Architecture :

VOLTAGE-FEEDBACK

Qualification Status :

Not Qualified

Number of Functions :

1

Bias Current-Max (IIB) @25C :

0.5 µA

Surface Mount :

yes

Terminal Pitch :

1.27 mm

Unity Gain BW-Nom :

15000 kHz

Subcategory :

Operational Amplifier

Terminal Form :

Gull wing

JESD-30 Code :

S-PDSO-G8

JESD-609 Code :

e6

Supply Voltage Limit-Max :

20 V

Seated Height-Max :

2 mm

Pin Count :

8

Package Shape :

Square

Frequency Compensation :

yes

Slew Rate-Min :

50 V/us

Temperature Grade :

COMMERCIAL EXTENDED

Length :

5 mm

Common-mode Reject Ratio-Min :

70 dB

Width :

5 mm
