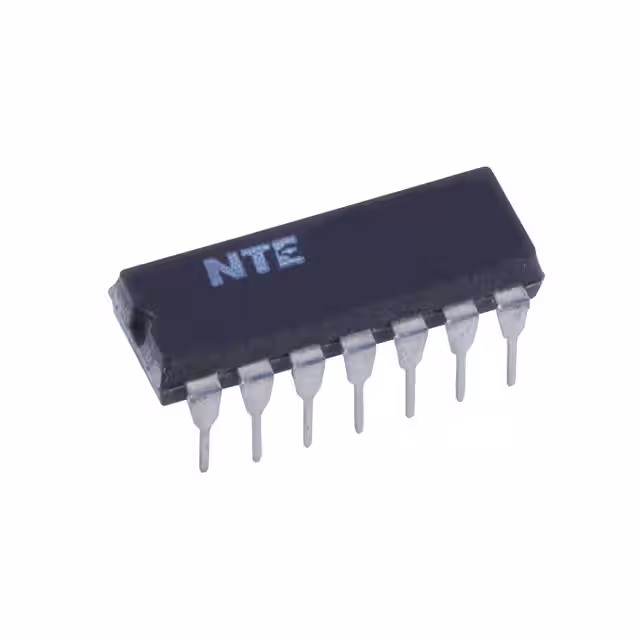

NTE4001B

Manufacturer :

NTE Electronics, Inc.

Product Category :

Gates and Inverters

Number of Pins :

14

Length :

152.4 mm

Number of Terminals :

14

Package / Case :

14-DIP (0.300, 7.62mm)

Supply Voltage-Max (Vsup) :

18 V

Product Status :

Active

Manufacturer :

NTE Electronics

Number of Functions :

4

Features :

-

Min Supply Voltage :

3 V

Operating Temperature :

-55°C ~ 125°C

Terminal Form :

THROUGH-HOLE

Package :

Bag

Mounting Type :

Through Hole

Number of Elements :

4

Supplier Device Package :

14-DIP

Terminal Position :

Dual

Max Propagation Delay @ V, Max CL :

80ns @ 15V, 50pF

Max Supply Voltage :

18 V

Output Current :

10 mA

Current - Output High, Low :

3.4mA, 3.4mA

Series :

4000B

Surface Mount :

No

Package Shape :

RECTANGULAR

Logic Type :

NOR Gate

Logic Function :

AND, NOR

Seated Height-Max :

5.08 mm

Weight :

453.59237 mg

Propagation Delay :

100 ns

Propagation Delay (tpd) :

250 ns

Terminal Pitch :

2.54 mm

Supply Voltage-Min (Vsup) :

3 V

Family :

4000/14000/40000

Technology :

CMOS

Voltage - Supply :

3V ~ 18V

Width :

76.2 mm

Height :

12.7 mm

Current - Quiescent (Max) :

1 µA

RoHS :

Compliant

Number of Channels :

2

Reach Compliance Code :

Unknown

Number of Circuits :

4

JESD-30 Code :

R-PDIP-T14

Mount :

Through Hole

Number of Inputs :

2

Logic IC Type :

NOR Gate

Peak Reflow Temperature (Cel) :

NOT SPECIFIED
