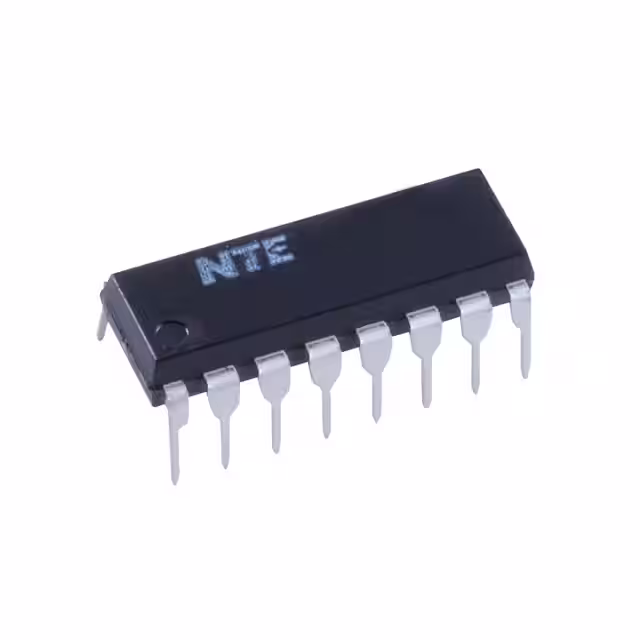

NTE4026B

Manufacturer :

NTE Electronics, Inc.

Product Category :

Counters, Dividers

Reach Compliance Code :

Unknown

Package :

Bag

Seated Height-Max :

5.08 mm

Supplier Device Package :

16-PDIP

Number of Elements :

1

Family :

4000/14000/40000

Timing :

-

Terminal Form :

THROUGH-HOLE

Mode of Operation :

SYNCHRONOUS

Mounting Type :

Through Hole

Temperature Grade :

Industrial

Number of Functions :

1

Voltage - Supply :

3 V ~ 15 V

Width :

7.62 mm

Propagation Delay (tpd) :

700 ns

Reset :

-

Number of Bits per Element :

16

Number of Bits :

5

Terminal Position :

Dual

Additional Feature :

LG_MAX

Supply Voltage-Min (Vsup) :

3 V

Product Status :

Active

Logic IC Type :

RING COUNTER

Number of Terminals :

16

Trigger Type :

Negative Edge

Surface Mount :

No

Length :

22 mm

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Pitch :

2.54 mm

Operating Temperature :

-40°C ~ 85°C

Supply Voltage-Max (Vsup) :

18 V

Load/Preset Input :

yes

Technology :

CMOS

Direction :

-

JESD-30 Code :

R-PDIP-T16

Base Product Number :

NTE4026

Package / Case :

16-DIP (0.260, 6.60mm)

Manufacturer :

NTE Electronics

Series :

-

Count Direction :

UP

Logic Type :

Counter, Decade

Package Shape :

RECTANGULAR
