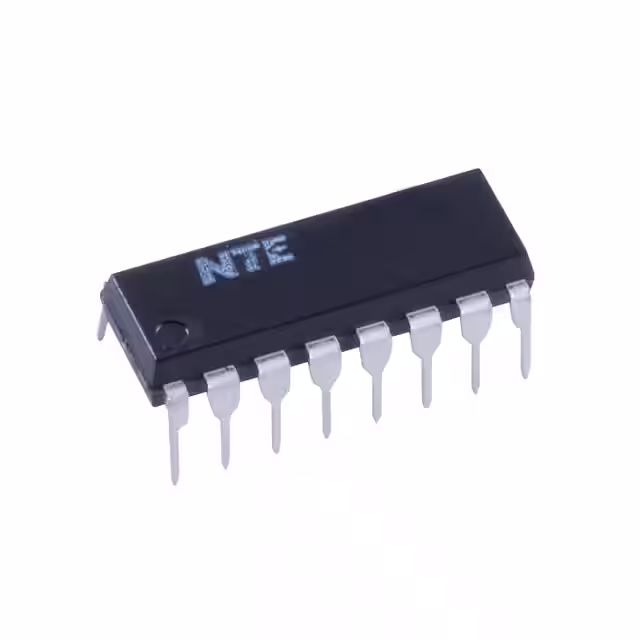

NTE4017B

Manufacturer :

NTE Electronics, Inc.

Product Category :

Counters, Dividers

Terminal Pitch :

2.54 mm

Reach Compliance Code :

Unknown

Series :

4000B

Package :

Bag

Reset :

-

Technology :

CMOS

Number of Bits per Element :

10

Mounting Type :

Through Hole

Package Shape :

RECTANGULAR

Propagation Delay (tpd) :

650 ns

Supplier Device Package :

16-DIP

Logic Type :

Counter, Decade

Base Product Number :

NTE4017

Length :

22 mm

Timing :

-

Width :

7.62 mm

Direction :

-

JESD-30 Code :

R-PDIP-T16

Operating Temperature :

-40°C ~ 85°C (TA)

Supply Voltage-Min (Vsup) :

3 V

Family :

4000/14000/40000

Supply Voltage-Max (Vsup) :

18 V

Surface Mount :

No

Count Direction :

UP

Trigger Type :

POSITIVE EDGE

Number of Elements :

1

Product Status :

Active

Terminal Form :

THROUGH-HOLE

Seated Height-Max :

5.08 mm

Voltage - Supply :

3 V ~ 18 V

Terminal Position :

Dual

HTS Code :

8542.39.00.01

Number of Bits :

10

Manufacturer :

NTE Electronics

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Functions :

1

Package / Case :

16-DIP (0.260, 6.60mm)

Number of Terminals :

16

Load/Preset Input :

yes

Additional Feature :

LG_MAX

Mode of Operation :

SYNCHRONOUS

Logic IC Type :

RING COUNTER

Temperature Grade :

Industrial
