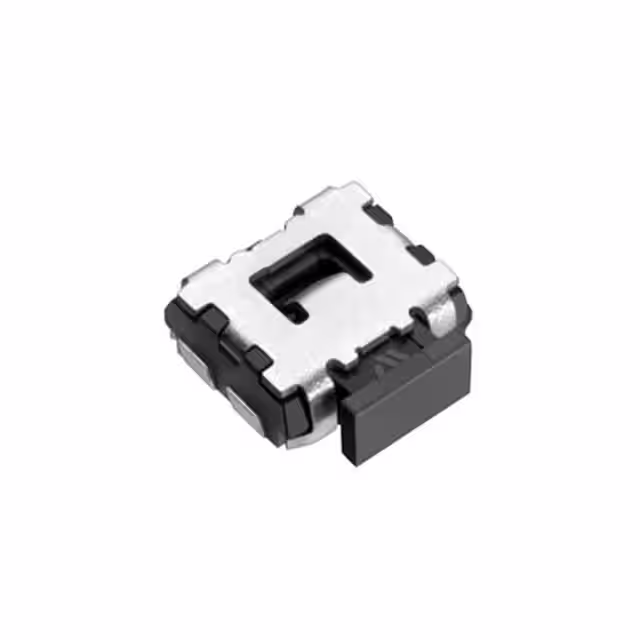

R-666994

Manufacturer :

NMB

Product Category :

Operating Force :

163gf

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Features :

-

Mounting Type :

Surface Mount, Right Angle

Series :

SOU

Outline :

3.60mm x 2.90mm

Actuator Type :

Rectangular Button

Mechanical Life :

100,000 Cycles

Actuator Height off PCB, Vertical :

-

Operating Temperature :

-

Base Product Number :

SOU-242

Actuator Length, Right Angle :

3.55mm

Product Status :

Active

Illumination Type, Color :

-

Switch Function :

Off-Mom

Actuator Material :

-

Illumination Voltage (Nominal) :

-

Ingress Protection :

-

Termination Style :

SMD (SMT) Tab

Illumination :

Non-Illuminated

Switch Travel :

0.20mm

Circuit :

SPST-NO

Actuator Orientation :

Side Actuated

Contact Rating @ Voltage :

0.05A @ 12VDC
