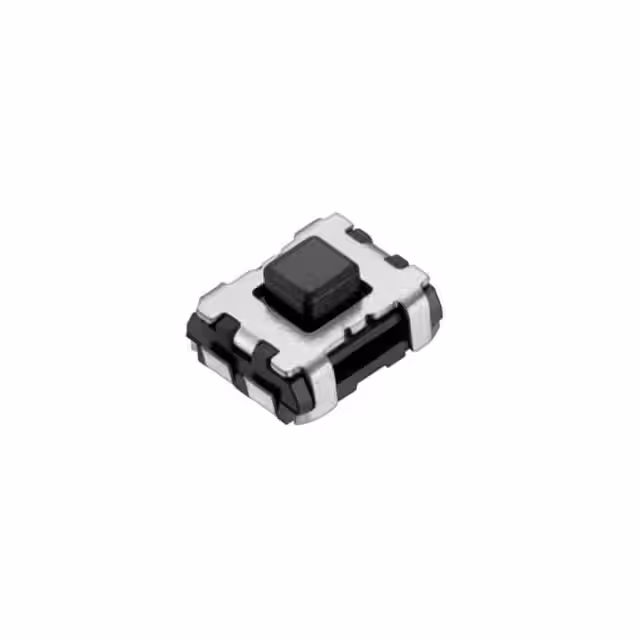

R-667766

Manufacturer :

NMB

Product Category :

Switch Function :

Off-Mom

Illumination :

Non-Illuminated

Termination Style :

SMD (SMT) Tab

Mounting Type :

Surface Mount

Actuator Orientation :

Top Actuated

Actuator Material :

-

Operating Force :

387gf

Switch Travel :

-

Illumination Voltage (Nominal) :

-

Outline :

3.30mm x 2.90mm

Contact Rating @ Voltage :

0.05A @ 12VDC

Operating Temperature :

-

Actuator Height off PCB, Vertical :

1.50mm

Product Status :

Active

Features :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Ingress Protection :

-

Illumination Type, Color :

-

Circuit :

SPST-NO

Actuator Type :

Square Button

Actuator Length, Right Angle :

-

Mechanical Life :

100,000 Cycles

Base Product Number :

SOF-269

Series :

SOF
