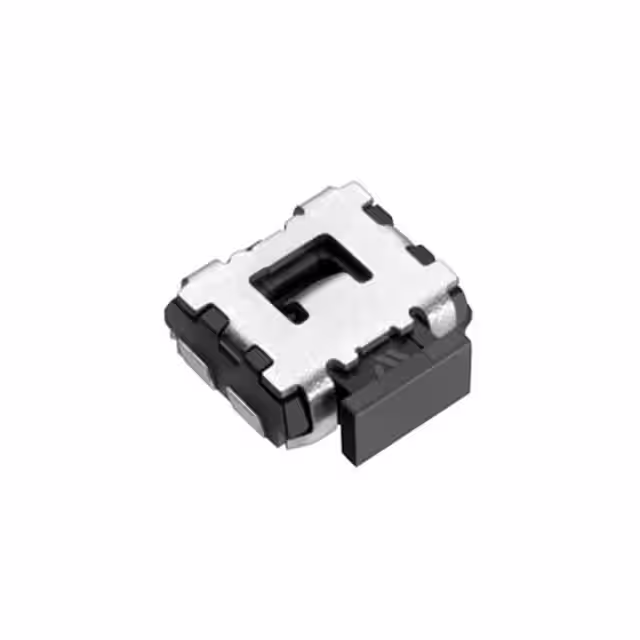

R-667270

Manufacturer :

NMB

Product Category :

Series :

SOU

Outline :

3.60mm x 2.90mm

Termination Style :

SMD (SMT) Tab

Circuit :

SPST-NO

Product Status :

Active

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Illumination Voltage (Nominal) :

-

Switch Function :

Off-Mom

Illumination Type, Color :

-

Actuator Length, Right Angle :

3.55mm

Actuator Material :

-

Actuator Orientation :

Side Actuated

Operating Temperature :

-

Features :

-

Mounting Type :

Surface Mount, Right Angle

Base Product Number :

SOU-248

Ingress Protection :

-

Operating Force :

204gf

Contact Rating @ Voltage :

0.05A @ 12VDC

Illumination :

Non-Illuminated

Actuator Height off PCB, Vertical :

-

Switch Travel :

0.20mm

Mechanical Life :

100,000 Cycles

Actuator Type :

Rectangular Button
