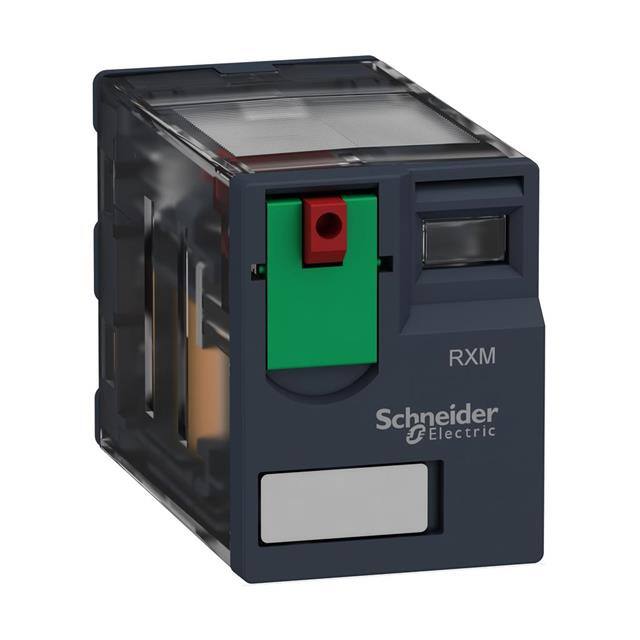

RXM2AB1B7
Or copy the link below:
- Mfr.Part #
- RXM2AB1B7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 17
- In Stock ：
- 17
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Must Release Voltage :
- 3.6 VAC
- Width :
- 21
- Material contact :
- Other
- Number of contacts as normally open contact :
- 0
- Rated control supply voltage at AC 50 Hz :
- 24 - 24
- Coil Termination :
- Plug Pin
- Contact Termination :
- Quick Connect
- Coil Insulation :
- -
- Termination Style :
- Plug In
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Manufacturer :
- Schneider Electric
- Subcategory :
- Relays
- Type of electric connection :
- Plug-in connection
- Series :
- RXM
- Contact Form :
- DPDT (2 Form C)
- Number of Poles :
- 2
- Switching Current :
- 12A
- Brand :
- Schneider Electric
- Contact Current Rating :
- 12 A
- Coil Current :
- 133.3 mA
- Mounting Style :
- Plug In
- Seal Rating :
- -
- Contact Configuration :
- DPDT
- Package :
- Box
- Operate Time :
- 20 ms
- Type :
- Harmony Relay
- Length :
- 21mm
- Coil Resistance :
- 180Ω
- Must Operate Voltage :
- 19.2 VAC
- Coil Power :
- 1.2W
- Features :
- Lighted Indicator
- Switching Voltage :
- 120 VAC
- Coil Voltage :
- 24V ac
- RoHS :
- Details
- Voltage type for actuating :
- AC
- Product Category :
- Industrial Relays
- Nominal current :
- 12
- Terminal Type :
- Plug In
- With detachable clamps :
- No
- Rated control supply voltage at AC 60 Hz :
- 24 - 24
- Product :
- Industrial Relays
- Depth :
- 55
- Relay Type :
- GENERAL PURPOSE
- Contact Rating (Current) :
- 10 A
- Current Rating :
- 12 A
- Number of contacts as change-over contact :
- 2
- Release Time :
- 20 ms
- Mounting Type :
- Plug In
- Degree of protection (IP) :
- IP40
- Height :
- 27
- Operating Temperature :
- -40°C ~ 55°C
- Contact Material :
- Silver Nickel (AgNi)
- Number of contacts as normally closed contact :
- 0
- Coil Type :
- Non-Latching
- Product Type :
- Industrial Relays
- Material of contact surface :
- Other
- IP Rating :
- IP40
- Product Status :
- Active
- Datasheets
- RXM2AB1B7
