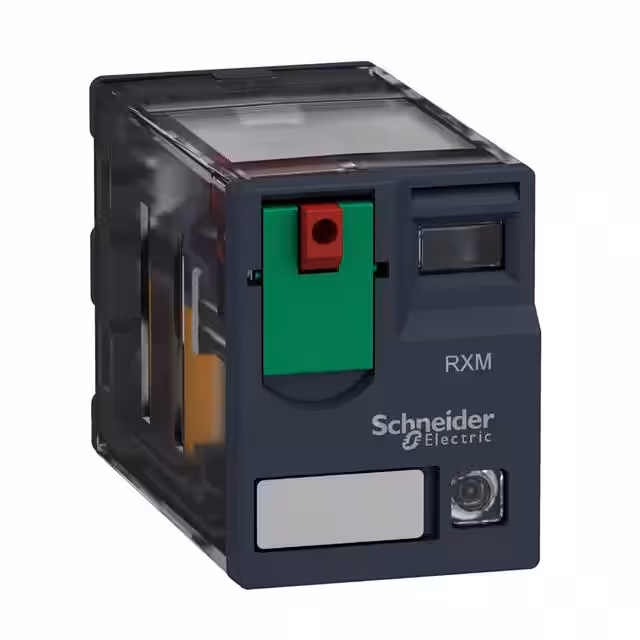

RXM2AB2F7
Or copy the link below:
- Mfr.Part #
- RXM2AB2F7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 18
- In Stock ：
- 18
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Contact Rating (Current) :
- 10 A
- Number of Poles :
- 2
- IP Rating :
- IP40
- Features :
- Lighted Indicator, Test Button
- Type :
- Harmony Relay
- Mounting Type :
- Plug In
- Switching Voltage :
- 120 VAC
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Coil Voltage :
- 120V AC
- Product Category :
- Industrial Relays
- Depth :
- 47.7mm
- Current Rating :
- 12 A
- Operate Time :
- 20 ms
- Contact Material :
- Silver Nickel (AgNi)
- Contact Termination :
- Quick Connect
- Coil Termination :
- Plug Pin
- Contact Form :
- DPDT (2 Form C)
- Relay Type :
- GENERAL PURPOSE
- Product Status :
- Active
- Length :
- 21mm
- Must Release Voltage :
- 18 VAC
- Switching Current :
- 12A
- Must Operate Voltage :
- 96 VAC
- Subcategory :
- Relays
- Height :
- 27mm
- Coil Current :
- 27.1 mA
- Product Type :
- Industrial Relays
- Manufacturer :
- Schneider Electric
- Coil Insulation :
- -
- Mounting Style :
- Plug In
- Package :
- Box
- Contact Configuration :
- DPDT
- RoHS :
- Details
- Termination Style :
- Plug In
- Coil Power :
- 1.2W
- Coil Resistance :
- 3630Ω
- Coil Type :
- Non-Latching
- Operating Temperature :
- -40°C ~ 55°C
- Release Time :
- 20 ms
- Series :
- RXM
- Seal Rating :
- -
- Product :
- Industrial Relays
- Brand :
- Schneider Electric
- Width :
- 21 mm
- Contact Current Rating :
- 12 A
- Terminal Type :
- Plug In
- Datasheets
- RXM2AB2F7
RXM2AB2F7 datasheet pdf and Power Relays, Over 2 Amps product details from Schneider stock available at
