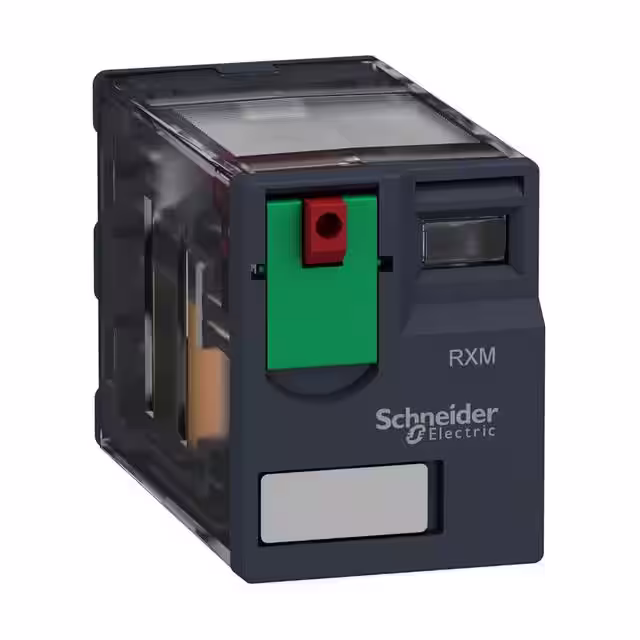

RXM2AB1E7
Or copy the link below:
- Mfr.Part #
- RXM2AB1E7
- Manufacturer
- Schneider Electric
- Package / Case
- Datasheet
- Download
- Description
- HARMONY, MINIATURE PLUG-IN RELAY
- Stock
- 35,621
- In Stock ：
- 35,621
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Schneider Electric
- Product Category :
- Power Relays, Over 2 Amps
- Rated control supply voltage at AC 50 Hz :
- 48 - 48
- Number of contacts as change-over contact :
- 2
- Seal Rating :
- -
- Operating Temperature :
- -40°C ~ 55°C
- Contact Termination :
- Quick Connect
- Depth :
- 55
- Current Rating :
- 12 A
- Must Release Voltage :
- 7.2 VAC
- Switching Voltage :
- 250VAC, 28VDC - Max
- Product Status :
- Active
- Manufacturer :
- Schneider Electric
- Release Time :
- 20 ms
- Terminal Type :
- Plug In
- Contact Material :
- Silver Nickel (AgNi)
- Degree of protection (IP) :
- IP40
- Number of contacts as normally closed contact :
- 0
- Number of Poles :
- 2
- Material of contact surface :
- Other
- Coil Voltage :
- 48VAC
- Type of electric connection :
- Plug-in connection
- Product Category :
- Industrial Relays
- RoHS :
- Details
- Brand :
- Schneider Electric
- Termination Style :
- Plug In
- Rated control supply voltage at AC 60 Hz :
- 48 - 48
- Coil Resistance :
- 710 Ohms
- Operate Time :
- 20 ms
- Coil Termination :
- Plug Pin
- Relay Type :
- GENERAL PURPOSE
- Material contact :
- Other
- Coil Insulation :
- -
- Product :
- Industrial Relays
- Contact Rating (Current) :
- 12 A
- Height :
- 27
- Series :
- Harmony
- Features :
- Test Button
- Nominal current :
- 12
- Mounting Style :
- Plug In
- Contact Configuration :
- DPDT
- Coil Type :
- Non Latching
- Coil Current :
- 67.6 mA
- Number of contacts as normally open contact :
- 0
- Mounting Type :
- Socketable
- Contact Current Rating :
- 12 A
- Package :
- Box
- Must Operate Voltage :
- 38.4 VAC
- Contact Form :
- DPDT (2 Form C)
- Coil Power :
- 1.2W
- Product Type :
- Industrial Relays
- Width :
- 21
- Voltage type for actuating :
- AC
- With detachable clamps :
- yes
- Length :
- 21mm
- Standards Met :
- CE, CSA, EN/IEC, GOST, Lloyds, REACH, RoHS Compliant, UL
- Subcategory :
- Relays
- Switching Current :
- 12A
- Datasheets
- RXM2AB1E7
RXM2AB1E7 datasheet pdf and Power Relays, Over 2 Amps product details from Schneider Electric stock available at
