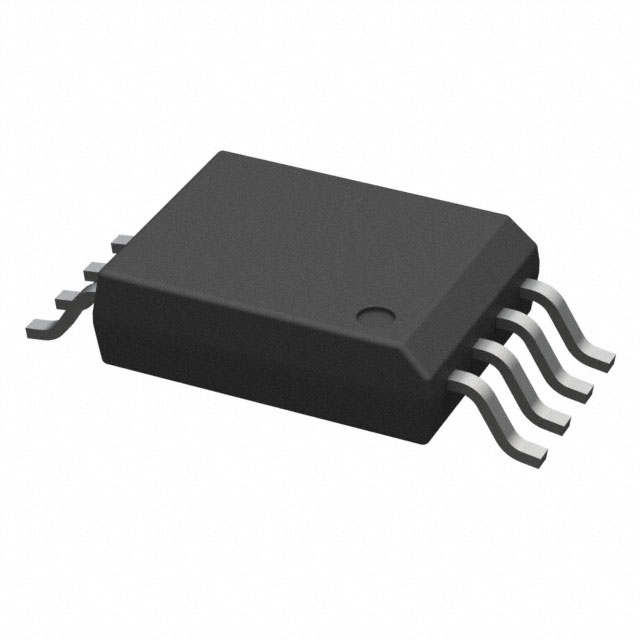

UCC5304DWV

Manufacturer :

Texas Instruments

Product Category :

Isolators - Gate Drivers

Mounting Style :

SMD/SMT

Approval Agency :

CQC, UL, VDE

Technology :

Si

Current - Peak Output :

4A, 6A

JESD-30 Code :

R-PDSO-G8

Rise / Fall Time (Typ) :

5ns, 6ns

JESD-609 Code :

e4

Maximum Operating Temperature :

+ 125 C

Factory Lead Time :

42 Weeks

Supply Voltage1-Max :

18 V

Minimum Operating Temperature :

- 40 C

Output Current :

6 A

Voltage - Isolation :

5000Vrms

Supply Voltage1-Min :

6 V

Product Status :

Active

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

RoHS :

Details

Product Category :

Gate Drivers

Supply Voltage1-Nom :

12 V

Pbfree Code :

yes

Number of Functions :

1

Pulse Width Distortion (Max) :

5.5ns

Reach Compliance Code :

Compliant

High Side Driver :

yes

Output Current-Max :

6 A

Number of Terminals :

8

Brand Name :

Texas

Seated Height-Max :

2.8 mm

Number of Drivers :

1 Driver

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Brand :

Texas Instruments

Shutdown :

No Shutdown

Base Product Number :

UCC5304

Product Type :

Gate Drivers

Rise Time :

16 ns

Propagation Delay tpLH / tpHL (Max) :

40ns, 40ns

Temperature Grade :

Automotive

Packaging :

Cut Tape

Common Mode Transient Immunity (Min) :

100V/ns

Surface Mount :

yes

Voltage - Output Supply :

6V ~ 18V

Type :

High-Side, Low-Side

Number of Outputs :

1 Output

Input Characteristics :

Schmitt Trigger

Supplier Device Package :

8-SOIC

Package / Case :

SOIC-8

Series :

UCC5304

Mounting Type :

Surface Mount

Current - Output High, Low :

4A, 6A

Subcategory :

PMIC - Power Management ICs

Width :

5.85 mm

Product :

Isolated Gate Drivers

Terminal Position :

Dual

Terminal Form :

Gull wing

Length :

7.5 mm

Package Shape :

RECTANGULAR

Voltage - Forward (Vf) (Typ) :

-

Interface IC Type :

BUFFER OR INVERTER BASED MOSFET DRIVER

Number of Channels :

1

Operating Temperature :

-40°C ~ 125°C

Terminal Pitch :

1.27 mm
