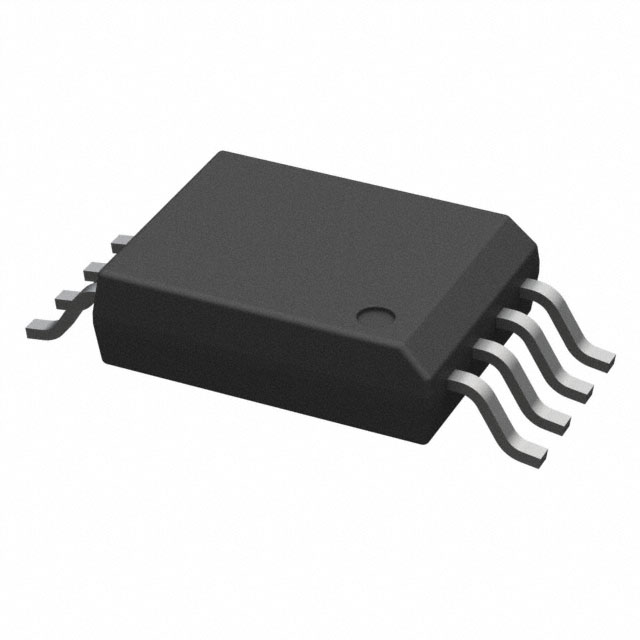

UCC5304DWVR

Manufacturer :

Texas Instruments

Product Category :

Isolators - Gate Drivers

Seated Height-Max :

2.8 mm

Type :

High-Side, Low-Side

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Temperature Grade :

Automotive

Propagation Delay tpLH / tpHL (Max) :

40ns, 40ns

Voltage - Output Supply :

6V ~ 18V

Number of Outputs :

1 Output

Supplier Device Package :

8-SOIC

Output Current :

6 A

Mounting Style :

SMD/SMT

Product Category :

Gate Drivers

Output Current-Max :

6 A

Length :

7.5 mm

Pbfree Code :

yes

Input Characteristics :

Schmitt Trigger

Rise Time :

16 ns

Supply Voltage1-Max :

18 V

Brand :

Texas Instruments

Common Mode Transient Immunity (Min) :

100V/ns

Voltage - Forward (Vf) (Typ) :

-

Technology :

Si

Terminal Pitch :

1.27 mm

Approval Agency :

CQC, UL, VDE

Factory Lead Time :

42 Weeks

Terminal Position :

Dual

Number of Channels :

1

Terminal Form :

Gull wing

Series :

UCC5304

Number of Drivers :

1 Driver

Surface Mount :

yes

Maximum Operating Temperature :

+ 125 C

Pulse Width Distortion (Max) :

5.5ns

Number of Functions :

1

Package / Case :

SOIC-8

Shutdown :

No Shutdown

Supply Voltage1-Nom :

12 V

RoHS :

Details

Packaging :

Cut Tape

High Side Driver :

yes

Operating Temperature :

-40°C ~ 125°C

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Brand Name :

Texas

Product :

Isolated Gate Drivers

JESD-30 Code :

R-PDSO-G8

Width :

5.85 mm

Number of Terminals :

8

JESD-609 Code :

e4

Voltage - Isolation :

5000Vrms

Product Status :

Active

Product Type :

Gate Drivers

Rise / Fall Time (Typ) :

5ns, 6ns

Current - Output High, Low :

4A, 6A

Current - Peak Output :

4A, 6A

Mounting Type :

Surface Mount

Reach Compliance Code :

Compliant

Interface IC Type :

BUFFER OR INVERTER BASED MOSFET DRIVER

Base Product Number :

UCC5304

Minimum Operating Temperature :

- 40 C

Subcategory :

PMIC - Power Management ICs

Package Shape :

RECTANGULAR

Supply Voltage1-Min :

6 V
