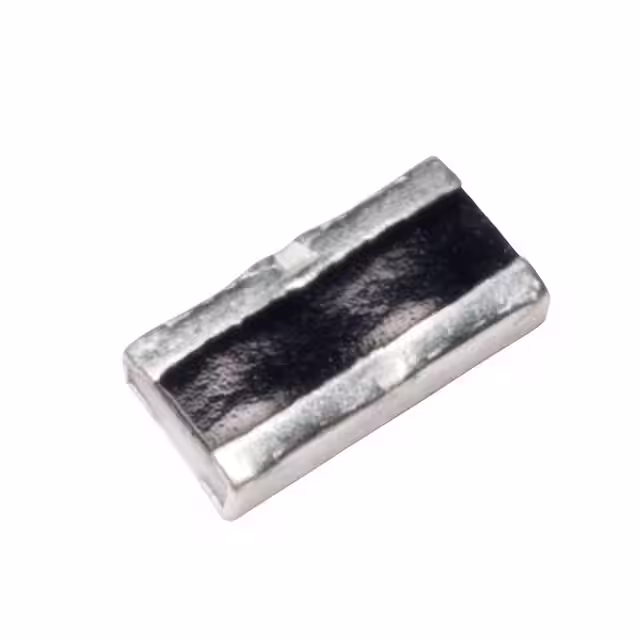

WU732BTTD18L0F

Manufacturer :

KOA Speer Electronics, Inc.

Product Category :

Chip Resistor - Surface Mount

Length :

1.6 mm

Qualification :

AEC-Q200

Product Depth (mm) :

3.2(mm)

Supplier Device Package :

0612

Operating Temperature :

-55°C ~ 155°C

Composition :

Thick Film

Anti-Sulfurated :

No

Height - Seated (Max) :

0.028" (0.70mm)

Number of Terminations :

2

Construction :

RECTANGULAR

Brand :

KOA Speer

Mounting Style :

PCB Mount

Subcategory :

Resistors

Package Type :

SMD

Height :

0.6 mm

Features :

Automotive AEC-Q200, Moisture Resistant

Case Size :

0612

Power Rating(s) :

1(W)

Minimum Operating Temperature :

- 55 C

Product Category :

Current Sense Resistors - SMD

Width :

3.2 mm

Anti-Surge :

No

Packaging :

Tape and Reel

Number of Terminals :

2

Package / Case :

Wide 1206 (3216 Metric), 0612

Ratings :

AEC-Q200

Product Status :

Active

Failure Rate :

-

Product Length (mm) :

1.6(mm)

Current Sensing :

yes

Maximum Operating Temperature :

+ 155 C

Operating Temp Range :

-55C to 155C

Tolerance :

±1%

Package :

Digi-Reel?

Product Type :

Current Sense Resistors

Product Height (mm) :

0.6(mm)

Temperature Coefficient :

±75ppm/°C

Manufacturer :

KOA Speer

Type :

Wide Terminal Type Flat Chip Resistor

Lead Spacing (nom) :

Not Required(mm)

Termination :

2 Terminal

Military Standard :

Not Required

Series :

WU73

Termination Style :

WIDE TERMINAL

Power Rating :

1 W

Resistance :

18 mOhms

Product Diameter (mm) :

Not Required(mm)

RoHS :

Details

Application :

Current Sense

Size / Dimension :

0.063" L x 0.126" W (1.60mm x 3.20mm)

Base Product Number :

WU732B

Tolerance (+ or -) :

1%

Power (Watts) :

1W

Temperature Range @ Derated Power :

70 TO 155
