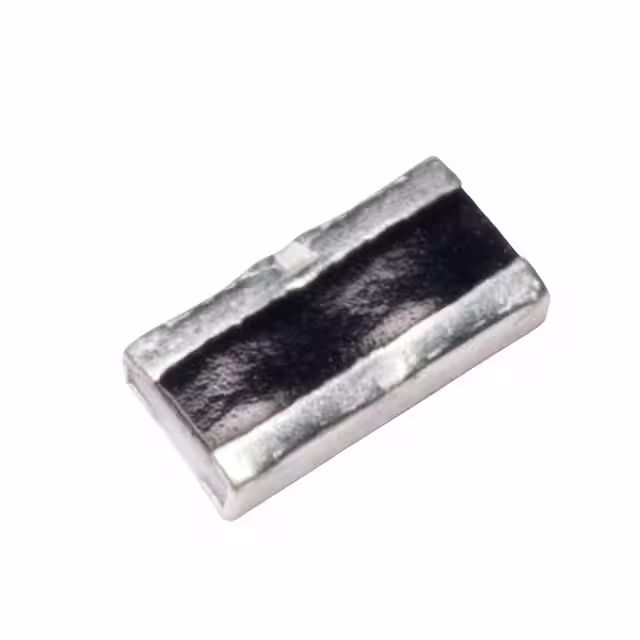

WU732BTTD30L0F

Manufacturer :

KOA Speer Electronics, Inc.

Product Category :

Chip Resistor - Surface Mount

Product Category :

Current Sense Resistors - SMD

Lead Spacing (nom) :

Not Required(mm)

Mounting Style :

PCB Mount

Failure Rate :

-

Tolerance (+ or -) :

1%

Subcategory :

Resistors

Brand :

KOA Speer

Package Type :

SMD

Tolerance :

±1%

Temperature Range @ Derated Power :

70 TO 155

Ratings :

AEC-Q200

Composition :

Thick Film

Width :

3.2 mm

Maximum Operating Temperature :

+ 155 C

Base Product Number :

WU732B

Power Rating(s) :

1(W)

Length :

1.6 mm

Height :

0.6 mm

Number of Terminals :

2

Package / Case :

Wide 1206 (3216 Metric), 0612

Product Height (mm) :

0.6(mm)

RoHS :

Non-Compliant

Temperature Coefficient :

±100ppm/°C

Package :

Digi-Reel?

Operating Temperature :

-55°C ~ 155°C

Power (Watts) :

1W

Construction :

RECTANGULAR

Features :

Automotive AEC-Q200, Moisture Resistant

Product Status :

Active

Product Depth (mm) :

3.2(mm)

Application :

Current Sense

Termination :

2 Terminal

Product Length (mm) :

1.6(mm)

Current Sensing :

yes

Resistance :

30 mOhms

Product Type :

Current Sense Resistors

Military Standard :

Not Required

Number of Terminations :

2

Size / Dimension :

0.063" L x 0.126" W (1.60mm x 3.20mm)

Series :

-

Height - Seated (Max) :

0.028" (0.70mm)

Anti-Surge :

No

Type :

Wide Terminal Type Flat Chip Resistor

Termination Style :

WIDE TERMINAL

Minimum Operating Temperature :

- 55 C

Packaging :

Tape and Reel

Operating Temp Range :

-55C to 155C

Technology :

Metal Foil

Anti-Sulfurated :

No

Power Rating :

1 W

Supplier Device Package :

0612

Product Diameter (mm) :

Not Required(mm)

Case Size :

0612

Manufacturer :

KOA Speer

Qualification :

AEC-Q200
