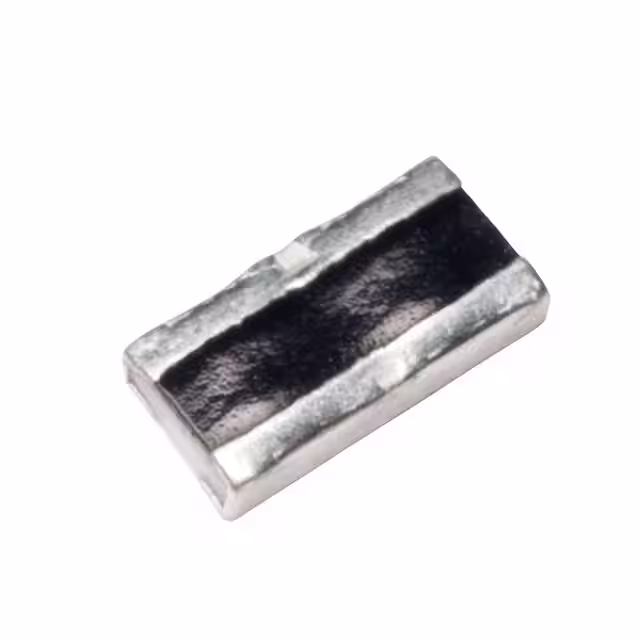

WU732BTTD36L0F

Manufacturer :

KOA Speer Electronics, Inc.

Product Category :

Chip Resistor - Surface Mount

Packaging :

Tape and Reel

Product Depth (mm) :

3.2(mm)

Product Category :

Current Sense Resistors - SMD

Operating Temperature :

-55°C ~ 155°C

Brand :

KOA Speer

Lead Spacing (nom) :

Not Required(mm)

Qualification :

AEC-Q200

Product Type :

Current Sense Resistors

Construction :

RECTANGULAR

Power (Watts) :

1W

Temperature Coefficient :

±100ppm/°C

Minimum Operating Temperature :

- 55 C

Series :

WU73

Height - Seated (Max) :

0.028" (0.70mm)

Current Sensing :

yes

Application :

Current Sense

Composition :

Thick Film

Temperature Range @ Derated Power :

70 TO 155

Supplier Device Package :

0612

Failure Rate :

-

Power Rating(s) :

1(W)

Width :

3.2 mm

Maximum Operating Temperature :

+ 155 C

RoHS :

Details

Power Rating :

1 W

Height :

0.6 mm

Mounting Style :

PCB Mount

Number of Terminals :

2

Case Size :

0612

Base Product Number :

WU732B

Features :

Automotive AEC-Q200, Moisture Resistant

Subcategory :

Resistors

Anti-Surge :

No

Product Status :

Active

Termination Style :

WIDE TERMINAL

Technology :

Metal Foil

Tolerance :

±1%

Product Diameter (mm) :

Not Required(mm)

Number of Terminations :

2

Resistance :

36 mOhms

Package Type :

SMD

Termination :

2 Terminal

Package / Case :

Wide 1206 (3216 Metric), 0612

Product Height (mm) :

0.6(mm)

Operating Temp Range :

-55C to 155C

Tolerance (+ or -) :

1%

Manufacturer :

KOA Speer

Size / Dimension :

0.063" L x 0.126" W (1.60mm x 3.20mm)

Type :

Wide Terminal Type Flat Chip Resistor

Anti-Sulfurated :

No

Ratings :

AEC-Q200

Package :

Digi-Reel?

Product Length (mm) :

1.6(mm)

Length :

1.6 mm

Military Standard :

Not Required
