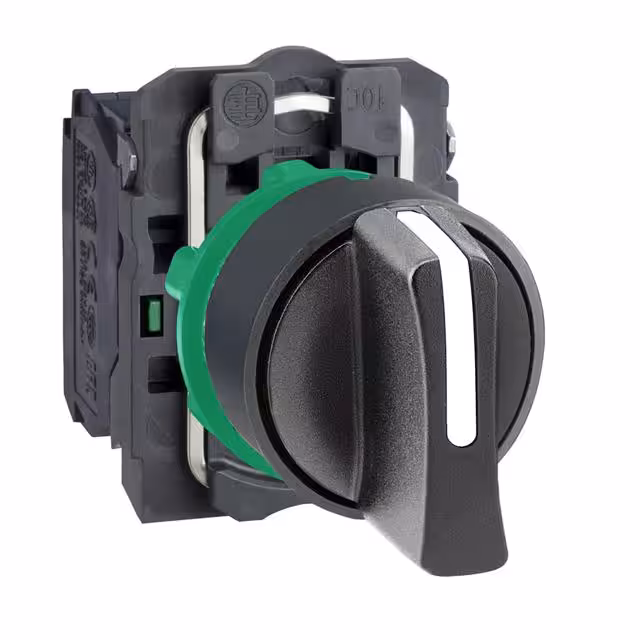

XB5AD53

Manufacturer :

Schneider Electric

Product Category :

Number of contacts as normally open contact :

2

Contact Form :

DPDT

Subcategory :

Switches

Angle of Throw :

45°

Material front ring :

Plastic

Manufacturer :

Schneider Electric

Connection :

Screws

Lighting type :

NONE

Number of Positions :

3

Electrical Life :

1,000,000 Cycles

Product Status :

Active

Product Category :

Rotary Switches

Series :

Harmony XB5

Lamp Type :

-

Type of electric connection :

Screw connection

Max. temperature :

+70°C

Brand :

Schneider Electric

Dim :

(W x H x D) 30 x 42 x 70 mm

Ingress Protection :

IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof

Operation type :

ROTARY SWITCH

Number of contacts as change-over contact :

0

Panel Cutout Dimensions :

Circular - 22.00mm Dia

Illumination :

Non-Illuminated

Current Rating :

1.2 A

Operating Temperature :

-40°C ~ 70°C

Switching angle :

3 x 45 °

Print motif :

Arrow symbol

Shape :

Round

Illumination Type, Color :

-

Termination Style :

Screw Terminal

Circuit :

DPST-NO

Contact Plating :

Silver Alloy

Switch Type :

ROTARY SWITCH

Index Angle :

45 Deg

Depth :

70mm

Switching current (max.) :

6A

Number of contacts as normally closed contact :

0

Functions :

Momentary

With light source :

No

Type of control element :

Short thumb-grip

Features :

-

Unlocking mechanism :

Turn

Min. temperature :

-40°C

Reach Compliance Code :

Unknown

Height :

42mm

Approval Agency :

CSA, UL

Mounting Type :

Panel Mount

Recess diameter :

22.5mm

Depth Behind Flange :

-

With front ring :

yes

Voltage Rating - AC :

120 V

Terminal Type :

Screw

Actuator :

Knob

Illumination Color :

-

Product Type :

Rotary Switches

Degree of protection (NEMA) :

13

Package :

Box

Content :

1pc(s)

Degree of protection (IP) :

IP67/IP69K

Width :

30mm

Voltage Rating - DC :

125 V

Illumination Voltage (Nominal) :

-

Voltage Rating :

600 VAC/DC

Switch Function :

Off-On

RoHS :

Details

Type :

Standard

Mechanical Life :

1,000,000 Cycles

Current Rating (Amps) :

6A (AC), 550mA (DC)

Colour front ring :

Black
